Model

7005 (RW)

Part Number

JW633A

Description

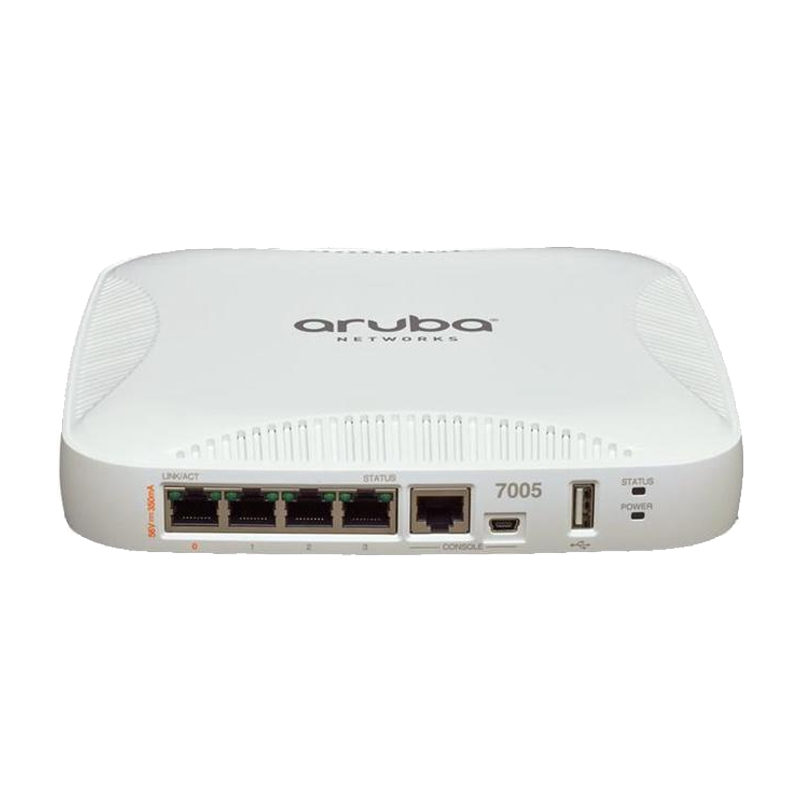

Aruba 7005 (RW) 4-port 10/100/1000BASE-T 16 AP and 1K Client Controller

Dimensions (H x W x D)

4.1 cm x 20 cm x 20 cm (1.6" x 7.9" x 7.9")

Weight

0.92 kg (2.03 lbs)

MTBF (hours, @ 25C)

323,896

Operating temperature

0° C to 40° C

Storage temperature

-40° C to 70° C

Humidity/storage humidity

10% to 95%, NC

Operating altitude

10,000 feet

Acoustic noise

0 dBA (fanless)

Maximum power consumption

16.6W (with USB)

Maximum campus AP licenses

16

Maximum remote AP licenses

16

Maximum concurrent users/devices

1024

Maximum VLANs

4094

Active firewall sessions

16384

Concurrent GRE tunnels

256

Concurrent IPsec sessions

512

Mobility Access Switch tunneled-node ports

512

Firewall throughput

2 Gbps

Encrypted throughput (3DES, AES-CBC)

1.2 Gbps

Encrypted throughput (AES-CCM)

1.6 Gbps

Form factor/footprint

Compact

Auto-negotiating 10/100/1000BASE-T

4

Gigabit Ethernet ports (GBIC or SFP)

N/A

USB 2.0

Yes (1)

Management/status LEDs

Yes

LINK/ACT and status LEDs

No

LCD panel and navigation buttons

No

Console port

Yes (micro USB/RJ-45)

Out-of-band management port

No

Safety certifications

UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition

EN 60950-1 Second Edition

EN 60950:2005

IEC 60950-1 Second Edition

NOM (obtained by partners and distributors)

Electromagnetic emissions certifications

FCC Part 15 Class B CE

AS/NZS CISPR22 Class B

CISPR22 Class A (7010, 7024, 7030), Class B (7005)

EN55022 Class A (7010, 7024, 7030), Class B (7005)

ICES-003 Class A (7010, 7024, 7030), Class B (7005)

VCCI Class A (7010, 7024, 7030), Class B (7005)

EN61000-3-2

EN61000-3-3

EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4- 6, EN 61000-

4-8, EN 61000-4-11, AS/NZS 3548

KN22 Class B

KCC

CNS13438 Class B

EN55024/CISPR24

KN24

Industry Canada Class B

CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC

Telco

Common Language Equipment Identifier (CLEI) Code

Regulatory SKU information

ARCN01014(7005), ARCN0103(7010), ARCN7024(7024), ARCN7030(7030)

Minimum ArubaOS Release

7005, AOS 6.4.1.0; 7008, AOS 6.5.0.0; 7010, AOS 6.4.1.0; 7024, AOS 6.4.3.0; 7030, AOS 6.4.1.0
