ASA5525-K8 Cisco 8GE Edition Bundle Security Appliance

USD

3427 ~~$8995~~ (61.9% OFF)

Detail:	Cisco ASA 5500 Edition Bundle ASA5525-K8 ASA 5525-X with SW, 8GE Data, 1GE Mgmt, AC, DES
Model:	ASA5525-K8
Condition:	Sealed New; In Stock
Related:	ASA5525-FPWR-K9 FirePOWER 8GE Port data Cisco Firewalls ASA5525-K9 Cisco 8GE Edition Bundle Security Appliance ASA5545-K8 CISCO Firewalls In Stock 8GE Data 1GE Mgmt AC DES Used ASA5505-K8 Cisco 10 Users 8 Ports Firewalls
Warranty:	3 Year-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 17.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

ASA5525-K8 Cisco 8GE Edition Bundle Security Appliance

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Cisco ASA 5525-K8 includes Cisco ASA 5525-X Firewall Edition; includes firewall services, 750 IPsec VPN peers, 2 SSL VPN peers, 8 copper Gigabit Ethernet data ports, 1 copper Gigabit Ethernet management port, 1 AC power supply, Active/Active High Availability, 2 security contexts, DES license.

Quick Specification

Table 1 shows the Quick Specs of the ASA5525-K8.

Product Code	ASA5525-K8
Interfaces	8 copper GE ports, 1 copper GE management port, 1 expansion slot
Stateful inspection throughput (maximum)	2 Gbps
3DES/AES VPN throughput	300 Mbps
IPsec VPN peers	750
Virtual interfaces (VLANs)	200
Memory	8 GB
Flash	8 GB
Height (rack units)	1 RU
Dimensions (D x H x W)	4.45 x 20.04 x 36.2 cm

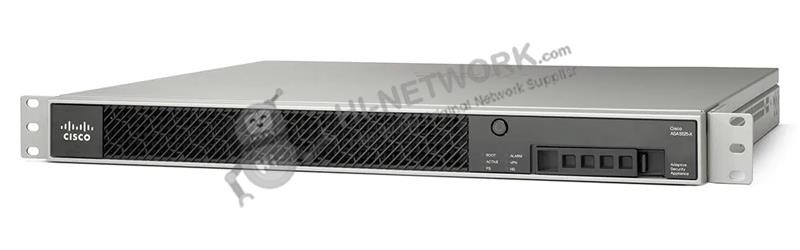

Figure 1 shows the appearance of ASA5525-K8.

front-asa5525-k8-datasheet

Product Details

Table 2 shows the Front Panel LEDs' descriptions.

LED	Color	Description
BOOT	Flashing green	Power-up diagnostics are running, or system is booting.
	Solid green	System has passed power-up diagnostics.
	Off	Power-up diagnostics are not operational.
ACTIVE	Solid green	Failover pair is operating normally.
ACTIVE	Off	Failover is not operational.
PS	-	Power supply status
ALARM	Off	Normal operating system function.
	Solid amber	Critical Alarm indicating one or more of the following:
		–a major failure of a hardware or software component.
		–an over-temperature condition.
		–power voltage is outside of the tolerance range.
VPN	Solid green	VPN tunnel is established.
VPN	Off	No VPN tunnel established.
HD	Flashing green	Proportioned to read/write activity.
	Solid amber	Hard-disk drive failure.
	Off	No hard-disk drive present.

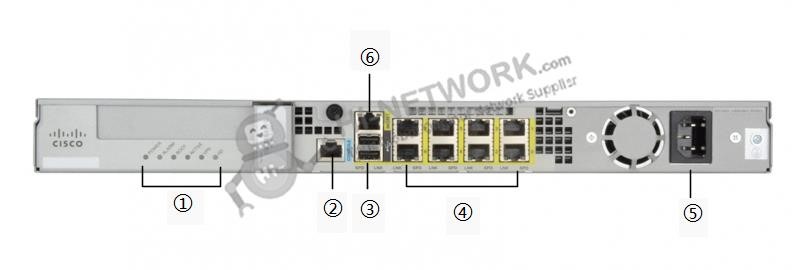

Figure 2 shows the back panel of ASA5525-K8.

back-panel-asa5525-k8-datasheet

Note:

(1)	LEDs	(4)	Eight Gigabit Ethernet data interfaces
(2)	One Console port	(5)	AC Socket
(3)	Two USB Ports	(6)	One Management 0/0 interface

The Licenses

Table 3 shows the recommended licenses for ASA5525-K8.

Licenses	Description
L-ASA-AC-E-5525=	AnyConnect Essentials VPN Licenses - Cisco L-ASA-AC-E-5525=, AnyConnect Essentials VPN License - ASA 5525-X (250 Users) for Cisco ASA 5500 Series
L-ASA-AC-M-5525=	AnyConnect Essentials VPN Licenses - Cisco L-ASA-AC-E-5525=, AnyConnect Essentials VPN License - ASA 5525-X (250 Users) for Cisco ASA 5500 Series
L-ASA5525-IPS-SSP=	Cisco ASA 5500 Series IPS Security Services Processors - L-ASA5525-IPS-SSP=, ASA 5525-X IPS SSP License for Cisco ASA 5500 Series
L-ASA-VPNP-5525=	Cisco VPN Licenses - L-ASA-VPNP-5525 Premium Shared VPN Participant License - ASA 5525-X VPN Licenses for Cisco
L-ASA-AC-PH-5525=	Cisco VPN Licenses - L-ASA-AC-PH-5525= AnyConnect VPN Phone License - ASA 5525-X (req Premium lic) VPN Licenses for Cisco
L-ASA5525-BOT-1YR=	Cisco ASA 5500 Firewall License L-ASA5525-BOT-1YR ASA 5525-X Botnet Traffic Filter Lic. for 1 Yr (eDelivery) for Cisco 5500 Firewall

Compare to Similar Items

Table 4 shows the comparison of ASA5525-K8 and ASA5525-K9.

Models	ASA5525-K8	ASA5525-K9
Description	Cisco ASA 5525-X Firewall Edition; includes firewall services, · 750 IPsec VPN peers, · 2 SSL VPN peers, · 8 copper Gigabit Ethernet data ports, · 1 copper Gigabit Ethernet management port, · 1 AC power supply, Active/Active High Availability, · 2 security contexts, · DES license	Cisco ASA 5525-X Firewall Edition; includes firewall services, · 750 IPsec VPN peers, · 2 SSL VPN peers, · 8 copper Gigabit Ethernet data ports, · 1 copper Gigabit Ethernet management port, · 1 AC power supply, · Active/Active High Availability, · 2 security contexts, · 3DES/AES license
Stateful Inspection Throughput (maximum)	2 Gbps	2 Gbps
Next-generation firewall throughput (multiprotocol)	650 Mbps	650 Mbps
Memory	8GB	8GB
Flash	8GB	8GB
Height (rack units)	1 RU	1 RU

Get More Information

Do you have any question about the ASA5525-K8?

Specific Data Sheet:

ASA5525-K8 Specification
General
Device Type	Security appliance
Height (Rack Units)	1U
Width	16.9 in
Depth	15.6 in
Height	1.7 in
Weight	14.99 lbs
Processor / Memory / Storage
RAM	8 GB
Networking
Form Factor	Rack-mountable
Ports Qty	8
Connectivity Technology	Wired
Data Link Protocol	Gigabit Ethernet
Performance	Firewall throughput: 2 Gbps VPN throughput (3DES/AES): 300 Mbps Connection rate: 20000 connections per second Firewall + intrusion prevention throughput: 600 Mbps
Capacity	IPsec VPN peers: 750 SSL VPN peers: 2 Concurrent sessions: 500000 Virtual interfaces (VLANs): 200 Security contexts: 2
Status Indicators	Power, HDD activity, active, alarm
Features	Firewall protection, VPN support, VLAN support, High Availability
Encryption Algorithm	DES
Expansion / Connectivity
Expansion Slots	1 (total) / 1 (free) x expansion slot
Interfaces	8 x 1000Base-T - RJ-45 1 x 1000Base-T (management) - RJ-45 1 x management - RJ-45 2 x USB 2.0 - Type A
Miscellaneous
Rack Mounting Kit	Included
Compliant Standards	VCCI, C-Tick, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-07, ANSI C63.4-2009
Power
Power Device	Internal power supply
Installed Qty	1
Max Supported Qty	1
Voltage Required	AC 120/230 V (50/60 Hz)
Power Provided	400 Watt
Software / System Requirements
Software Included	Drivers & Utilities
Manufacturer Warranty
Service & Support	Limited warranty - 90 days
Environmental Parameters
Min Operating Temperature	23 °F
Max Operating Temperature	104 °F
