Cisco AIR-CAP2702E-T-K9 2702E Wireless AP External Antenna T Regulatory Domain

USD

554 ~~$1345~~ (58.8% OFF)

Detail:	802.11ac CAP w/CleanAir; 3x4:3SS; Ext Ant; T Reg Domain
Model:	AIR-CAP2702E-T-K9
Condition:	New
Related:
Warranty:	1-Year Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 2.3	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Cisco AIR-CAP2702E-T-K9 2702E Wireless AP External Antenna T Regulatory Domain

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Based on the Cisco Aironet heritage of RF excellence, the 2700 Series utilizes a Purpose-built innovative chipset to provide a high-density experience for enterprise network. 3 x 4 MIMO (multiple-input multiple-output) technology with three-spatial-stream offers a greater coverage for more reliability and capacity than competing access points. AIR-CAP2702E-T-K9 is one of the 2700 series AP, needing wireless controller, providing external antenna and T regulatory domain.

Quick Specification

Table 1 shows the quick specification of AIR-CAP2702E-T-K9.

Model	AIR-CAP2702E-T-K9
Description	802.11ac CAP w/CleanAir; 3x4:3SS; Ext Ant; T Reg Domain
Frequency band and 20-MHz operating channels	T (T regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.280 to 5.320 GHz; 3 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
Antenna	External Antenna
802.11ac Wave 1 capabilities	● 3x4 MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Interfaces	● 2x10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45)
System memory	● 512 MB DRAM ● 64 MB flash
Dimensions (W x L x H)	● Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm)
Weight	● 2.2 lb (1.0 kg)

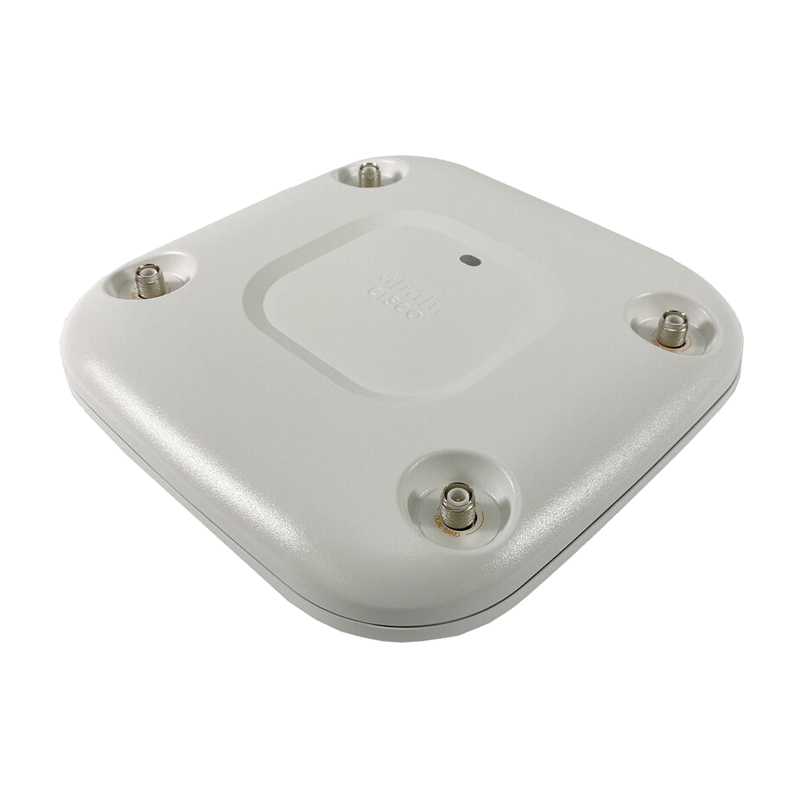

Figure 1 shows the appearance of AIR-CAP2702E-T-K9.

front-air-cap2702e-t-k9-datasheet

Get More Information

Do you have any question about AIR-CAP2702E-T-K9?

Specific Data Sheet:

AIR-CAP2702E-T-K9 Description
Description	802.11ac CAP w/CleanAir; 3x4:3SS; Ext Ant; T Reg Domain
Frequency band and 20-MHz operating channels	T (T regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.280 to 5.320 GHz; 3 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
Software	Cisco Unified Wireless Network Software Release 7.6MR2 or later
Supported wireless LAN controllers	● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller ● Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches
802.11n version 2.0 (and related) capabilities	● 3x4 MIMO with three spatial streams ● Maximal ratio combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 dynamic frequency selection (DFS) ● Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities	● 3x4 MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Integrated antenna	● 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360° ● 5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
External antenna (sold separately)	● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios
Interfaces	● 2x10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm)
Weight	● 2.2 lb (1.0 kg)
Environmental	● Nonoperating (storage) temperature: −22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: −4° to 122°F (-20° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft.
System memory	● 512 MB DRAM ● 64 MB flash
Input power requirements	● AP2700: 44 to 57 VDC ● Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz
Power draw	● AP2700: 15W Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable.
Powering options	● 802.3at PoE+ ● Enhanced PoE ● Cisco AP2700 power injectors (AIR-PWRINJ4=) ● Cisco AP2700 local power supply (AIR-PWR-C= or AIR-PWR-D=) Note: If 802.3af PoE is the source of power, the access point will dynamically shift from 3x4 to 3x3 and come up under PoE.
Warranty	Limited lifetime hardware warranty
