Description

802.11n CAP w/CleanAir; 4x4:3SS; Mod; Internal Antenna; C Regulatory domain

Frequency band and 20-MHz operating channels

C (C regulatory domain):

● 2.412 to 2.472 GHz; 13 channels

● 5.745 to 5.825 GHz; 5 channels

Software

Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers:

● 7.2 or later for the Cisco Aironet 3600 Series Access Point

● 7.4 or later for support of the Wireless Security Module for the 3600 Series Access Point

● 7.5 or later for support of the 802.11ac Wave 1 Module for the 3600 Series Access Point

Cisco IOS XE Software Release:

● 3.2.0SE or later for the Cisco Aironet 3600 Series Access Point

● 3.3.0SE or later for the Cisco 802.11ac Wave 1 Module for the 3600 Series Access Point

● Wireless Security Module for the 3600 Series Access Point support

Supported Wireless LAN Controllers

AireOS Wireless Controllers

● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller

Cisco IOS Wireless Controllers

● Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches

Module Options

Cisco Aironet IEEE 802.11ac Wave 1 Module

● Supports the IEEE 802.11ac specification and the features defined by the Wi-Fi Alliance for the first wave of Wi-Fi CERTIFIED 11ac

● 3x3:3SS (spatial streams), 80-MHz wide channels, 256 quadrature amplitude modulation (QAM), and data rates up to 1.3 Gbps

● Wi-Fi Alliance certified - http://www.wi-fi.org/certified-products-advanced-search

Hyperlocation Module with Advanced Security

● Hyperlocation Module provides full-spectrum scanning both 2.4- and 5-GHz for, wIPS for comprehensive detection and mitigation of over the network attacks, Cisco CleanAir technology detecting devices causing network interference, rogue device detection, context (location) awareness, FastLocate, and radio resource management (RRM) solutions

● BLE Beacon, incorporates five centrally managed virtual BLE beacons with separate Universal Unique Identifiers (UUIDs) and power levels

● FastLocate, provides faster updates per wifi device for a quicker refresh of the devices location

● One-meter of location accuracy of associated Wi-Fi clients, when paired with the Hyperlocation Antenna

● Provides full scanning of all 2.4- and 5-GHz channels while the Access Point is serving data clients on the integrated radios

Cisco Aironet Wireless Security Module

● Provides full-spectrum scanning for, wIPS for comprehensive detection and mitigation of over the network attacks, Cisco CleanAir technology detecting devices causing network interference, rogue device detection, context (location) awareness, FastLocate, and radio resource management (RRM) solutions

● FastLocate, provides faster updates per wifi device for a quicker refresh of the devices location

● Provides full scanning of all 2.4- and 5-GHz channels while the Access Point is serving data clients on the integrated radios (802.11b/g/n and 802.11a/n)

Cisco Universal Small Cell 8718

● Dual-band Switchable Multi-Mode Module, first band for LTE with 2x50 mw MIMO, one band for 3G with 100 mw transmit and receive diversity

● Software configurable to operate as UMTS and LTE. Band 1/3 (USC8718-M13-K9)

● Software configurable to operate as UMTS and LTE. Band 1/7 (USC8718-M17-K9)

● Software configurable to operate as UMTS and LTE. Band 2/4 (USC8718-M24-K9)

Cisco Universal Small Cell 8818

● Dual-band Switchable Multi-Mode Module, LTE only

● Software configurable to operate on either LTE cell. Band 1/3 (USC8818-C13-K9)

● Software configurable to operate on either LTE cell. Band 2/4 (USC8818-C24-K9)

Cisco Universal Small Cell 5310

● 3GPP band 1 (2100 MHz), 16 users, voice (R99), packet data (HSPA/HSDPA+)

● 3GPP band 2/5 (band 2 – 1930 and band 5 - 869), 16 users, voice (R99), packet data (HSPA/HSDPA+)

802.11n Version 2.0 (and Related) Capabilities

● 4x4 multiple-input multiple-output (MIMO) with three spatial streams

● Maximal ratio combining (MRC)

● 802.11n and 802.11a/g beamforming

● 20- and 40-MHz channels

● PHY data rates up to 450 Mbps (40-MHz with 5 Ghz)

● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

● 802.11 dynamic frequency selection (DFS)

● Cyclic shift diversity (CSD) support

Integrated Antenna

● 2.4 GHz, Gain 2 dBi, internal omni, horizontal beamwidth 360°

● 5 GHz, Gain 4 dBi, internal omni, horizontal beamwidth 360°

Interfaces

● 10/100/1000BASE-T autosensing (RJ-45)

● Management console port (RJ-45)

Indicators

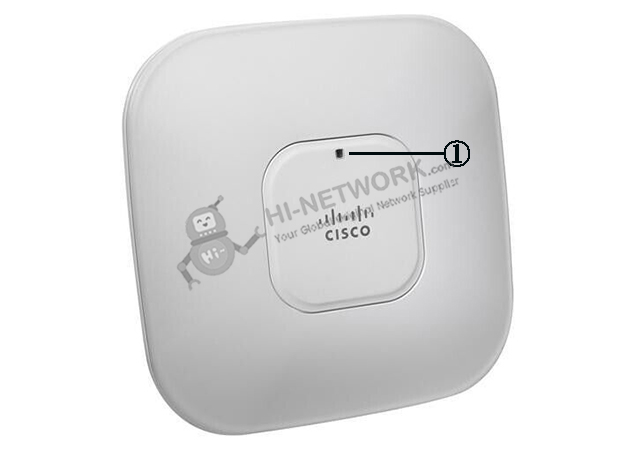

● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

● Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm)

Weight

● 2.5 lbs (1.13 kg)

Environmental

● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)

● Nonoperating (storage) Altitude Test -25˚C, 15,000 ft.

● Operating temperature: 32 to 104°F (0 to 40°C)

● Operating humidity: 10 to 90% percent (noncondensing)

● Operating Altitude Test -40˚C, 9843 ft.

System Memory

● 256-MB DRAM

● 32-MB flash

Warranty

Limited Lifetime Hardware Warranty
