Cisco WS-C2960S-48FPS-L 48 GigE PoE 740W 4 x SFP LAN Base Switch

USD

2336 ~~$7255~~ (67.8% OFF)

Detail:	Catalyst 2960S 48 GigE PoE 740W, 4 x SFP LAN Base
Model:	WS-C2960S-48FPS-L
Condition:	New
Related:
Warranty:	3-Year Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 10.7	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Cisco WS-C2960S-48FPS-L 48 GigE PoE 740W 4 x SFP LAN Base Switch

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

The WS-C2960S-48FPS-L is different from the WS-C2960S-48LPS-L in the PoE capabilities, because Cisco WS-C2960S-48FPS with Full PoE function can offer 740W PoE Power total with 24 ports up to 30W per switch ports or 48 ports up to 15.4W per switch port. But Cisco Catalyst Switch 2960S-48FPS-L and 2960S-48LPS-L share a similar datasheet with 4 One Gigabit Ethernet SFP uplink ports and optional Cisco FlexStack stacking supporting 20 Gbps of throughput. Both are Catalyst 2960-S models with LAN Base Software.

Quick Specification

Table 1 shows the quick specification.

Model	WS-C2960S-48FPS-L
Enclosure Type	Rack-mountable - 1U
Feature Set	LAN Base
PoE capacity	740W
Uplink Interfaces	Four 1G Small Form-Factor Pluggable (SFP)
Downlink Ports	48 × Ethernet 10/100/1000 PoE+ ports
Expansion Slot(s)	1 (total) / 1 (free) x Stacking Module
Switching capacity	176 Gbps
Forwarding/Filtering Rate:	77.4 Mpps
DRAM	128 MB
Flash Memory	64 MB
Dimensions	44.5 × 38.6 × 4.5 cm
Package Weight	10.65 Kg

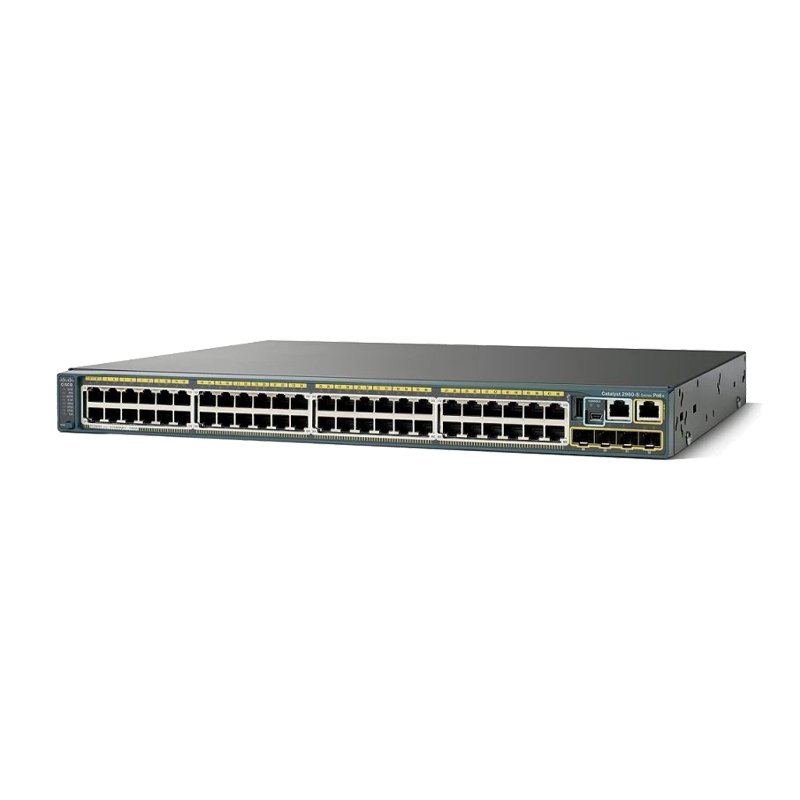

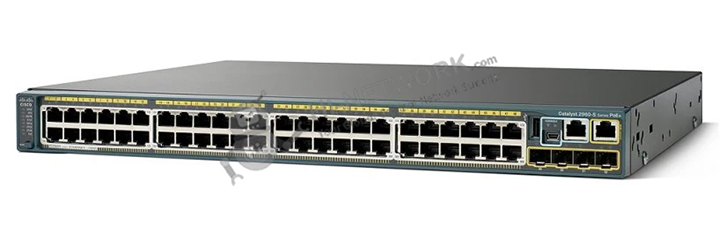

Figure 1 shows the appearance of the WS-C2960S-48FPS-L.

front-ws-c2960s-48fps-l-datasheet

Product Details

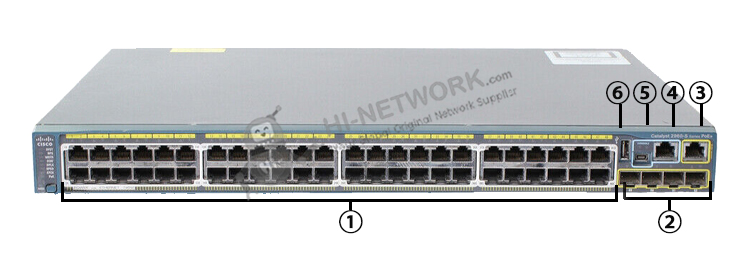

Figure 2 shows the front panel of the WS-C2960S-48FPS-L.

front-panel-ws-c2960s-48fps-l-datasheet

Note:

(1)	48 × Ethernet 10/100/1000 PoE+ ports	(4)	RJ45 Console Port
(2)	SFP Module Slots	(5)	USB mini-Type B (console) Port
(3)	Ethernet Management Port	(6)	USB Type A Port

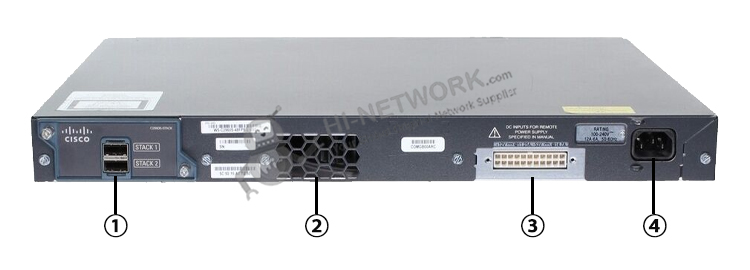

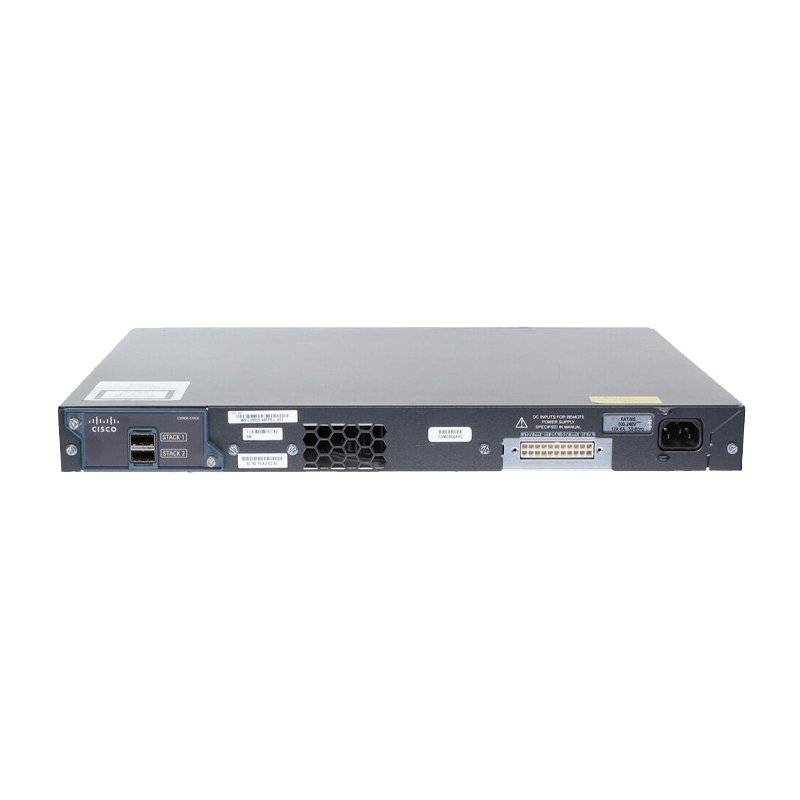

Figure 3 shows the back panel of the WS-C2960S-48FPS-L.

back-panel-ws-c2960s-48fps-l-datasheet

Note:

(1)	1 (total) / 1 (free) x Stacking Module	(3)	RPS Connector
(2)	Fan Exhaust	(4)	AC power connector

The Accessories

Table 2 shows some accessories of the WS-C2960S-48FPS-L.

Model	Description
C2960S-STACK	Catalyst 2960S FlexStack Stack Module optional for LAN Base
GLC-LH-SM	GE SFP, LC connector LX/LH transceiver
GLC-SX-MMD	1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45	Console Cable 6ft with RJ45 and DB9F

Compare to Similar Items

Table 3 shows the comparison of similar items.

Model	WS-C2960S-48FPS-L	WS-C2960S-48LPS-L
Ports	48 × Ethernet 10/100/1000 PoE+ ports	48 × Ethernet 10/100/1000 PoE+ ports
PoE Capacity	740W	370W
Uplinks	4 x 1G SFP	4 x 1G SFP
Feature Set	LAN Base	LAN Base
Stackable	Yes	Yes

Get More Information

Do you have any questions about the WS-C2960S-48FPS-L?

Specific Data Sheet:

WS-C2960S-48FPS-L Specification
General Information
Manufacturer	Cisco
Product ID	WS-C2960S-48FPS-L
Product Description	Cisco CAT2960S Stack 48 Gige-POE 740W 4 x SFP LAN
Product Type	Ethernet Switch
Marketing Information
The Cisco Catalyst WS-C2960S-48FPS-L Ethernet Switch is the leading Layer 2 edge, providing improved ease of use, highly secure business operations, improved sustainability, and a borderless network experience. It includes new Cisco FlexStack switch stacking capability with 1 and 10 Gigabit connectivity, and Power over Ethernet Plus (PoE+) with the Cisco Catalyst 2960 Switch offering fast Ethernet access connectivity and PoE capabilities. It is fixed-configuration access switch designed for enterprise, midmarket, and branch office networks to provide lower total cost of ownership.
Interfaces/Ports
Number of Ports	48
Gigabit Ethernet Port	Yes
Interfaces/Ports	48 x RJ-45 10/100/1000Base-T PoE LAN
Media & Performance
Forwarding/Filtering Rate	77.4 Mpps
Switching Throughput	176 Gbps
I/O Expansions
Number of Expansion Slots	5
Expansion Slots	(4 Total) SFP (mini-GBIC) Uplink (1 Total) Stacking Module
Network & Communication
Layer Support	2
Management & Protocols
Manageable	Yes
Management	DHCP QoS VLAN SNMP v1, v2, v3 Syslog CLI RMON CiscoWorks LAN Management Solution
Memory
Standard Memory	128MB
Memory Technology	DRAM
Flash Memory	64MB
Software
Operating System	Cisco IOS
Power Description
Power Over Ethernet	Yes
Power Source	Power Supply
Redundant Power Supply	Yes
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Rack-mountable Stackable
Dimensions	1.75" Height x 17.50" Width x 15.20" Depth
Weight (Approximate)	13 lb
