Cisco WS-C3560CX-8PC-S Catalyst 3560-CX Switch 8 Port PoE IP Base

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

WS-C3560CX-8PC-S compact enterprise class layer 3 switch offers 8-port Gigabit Ethernet data POE+ models. This switch support both 2 x 1 Gigabit copper and 2 x 1 Gigabit SFP uplinks.

Quick Specification

Table 1 shows the quick specification.

Model	WS-C3560CX-8PC-S
Feature Set	IP Base
Uplink Interfaces	2 Gigabit Ethernet RJ-45 uplinks, 2 SFP uplinks
Ports	8 x Gigabit Ethernet ports
Forwarding Bandwidth	16 Gbps
Switching Bandwidth (full-duplex capacity)	32 Gbps
Available POE Power	240 W
RAM	512 MB
Flash Memory	128 MB
Dimensions	4.44 x 26.9 x 23.8 cm
Package Weight	4.65 kg

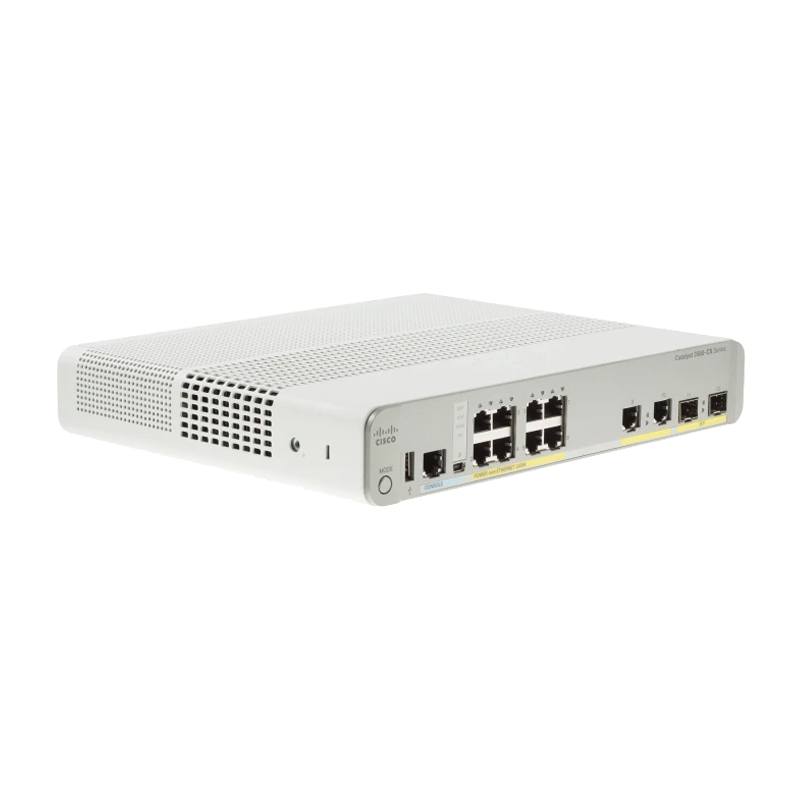

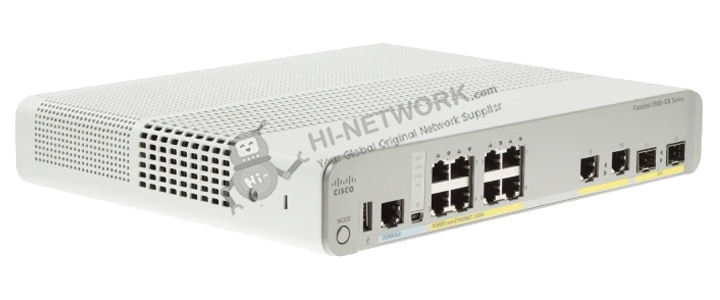

Figure 1 shows the appearance of the WS-C3560CX-8PC-S.

front-ws-c3560cx-8pc-s-datasheet

Product Details

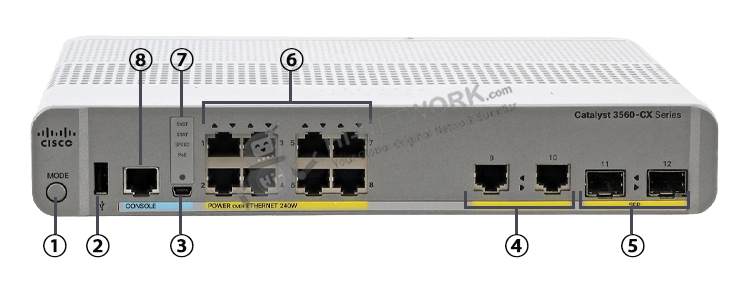

Figure 2 shows the front panel of WS-C3560CX-8PC-S.

front-panel-ws-c3560cx-8pc-s-datasheet

Note:

(1)	Mode button	(5)	SFP module slots
(2)	USB Type A port	(6)	8 x 10/100/1000 ports
(3)	USB mini-Type B (console) port	(7)	Switch LEDs
(4)	2 x 1G copper	(8)	RJ-45 Console Port

● Switch LEDs include SYST, STAT, SPEED LEDs and Console LED.

Table 2 shows the three LEDs descriptions.

LED	Color/Port Mode	Description
SYST	Off	System is not powered on.
(System LED)	Green	System is operating normally.
(System LED)	Amber	System is receiving power but is not operating properly.
STAT	Port status	The port status. This is the default mode.
SPEED	Port speed	The port operating speed: 10, 100, or 1000 Mb/s.
POE	Off	PoE is not enabled.
	Green	PoE is enabled. Ports are functioning correctly.
	Blinking Amber	● PoE mode is not selected ● At least one of the 10/100 or 10/100/100 PoE ports has been denied power ● At least one of the ports has a PoE fault

● The console LEDs show which console port is in use.

● If you connect a cable to a console port, the switch automatically uses that port for console communication. If you connect two console cables, the USB-mini console port has priority.

Table 3 shows the Console LED description.

LED	Color	Description
RJ-45 console port	Green	RJ-45 console port is active. USB-mini console port LED is not active.
RJ-45 console port	Off	Port is not active. USB-mini console port is active.
USB-mini console port	Green	USB-mini console port is active. RJ-45 console port LED is not active.
USB-mini console port	Off	Port is not active. RJ-45 console port is active.

The Accessories

Table 4 shows some recommended cables.

Model	Description
CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

Compare to Similar Items

Table 5 shows the comparison of similar items.

Model	WS-C3560CX-8PC-S	WS-C3560CX-12PC-S
Uplinks	2 x 1G copper plus 2 x 1G SFP+	2 x 1G copper plus 2 x 1G SFP+
Ports	8 x 10/100/1000 Gigabit Ethernet	12 x 10/100/1000 Gigabit Ethernet
Feature set	IP Base	IP Base
PoE Output Ports	8 PoE+	12 PoE+
Available POE Power	240W	240W

Get More Information

Do you have any questions about the WS-C3560CX-8PC-S?

Specific Data Sheet:

WS-C3560CX-8PC-S Datasheet
Product Model	WS-C3560CX-8PC-S
Ports	8 x 10/100/1000 Ethernet Ports
Uplinks	2 SFP & 2 GE uplinks
Layer	Layer 3
Power over Ethernet (PoE)	Yes
Flash Memory Installed	128 M
RAM Installed	512 M
PoE Budget	240 W
Power Over Ethernet (PoE)	PoE+
Switching Type	Gigabit Ethernet
Frequency	50/60 hertz
Software Type	Cisco IOS IP Base
MTBF	569,530 Hours
QoS Support	Yes
Management	CLI, Web management, SNMP
Security Features	ACLs, Port security, DHCP snooping
Product Dimensions (W x D x H)	10.6 x x9.4 x 1.7 inch
Operating Humidity	5 - 95% (non-condensing)
