Cisco WS-C3560X-48P-S Catalyst 3560X Switch 48 Port PoE IP Base

USD

4205 ~~$10400~~ (59.6% OFF)

5 5/5.0 Reviews Q/A 6 Sold/Mon
Detail:	Catalyst 3560X 48 Port PoE IP Base
Model:	WS-C3560X-48P-S
Condition:	New
Related:
Warranty:	3-Year Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 17	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Cisco WS-C3560X-48P-S Catalyst 3560X Switch 48 Port PoE IP Base

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Cisco Catalyst WS-C3560X-48P-S is 48 Gigabit Ethernet POE+ ports standalone switch in IP base feature set with no stacking option. Four optional network modules and license-base software feature provide flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. WS-C3560X-48P-S support IEEE802.3at standard to allocate up to 30W power on each port in total 435W POE budget to power up IP phones, wireless and video; customers can specify the power setting on individual port in command line setting. IP base feature set provide up to 1005-Vlans and basic layer 3 routing features, advanced security features and management features.

WS-C3560X-48P-S is designed for enterprise access/aggregation layer switching; however, customers can transparently upgrade the software feature to by purchasing IP services license to activity advanced layer 3 routing capability to fully support BGP, EIGRP, OSFP routing. WS-C3560X-48P-S switch comes with one default power supply module, customers can purchase additional power supply module insert into power supply bay 2 in order to power redundancy.

Quick Specification

Table 1 shows the quick specification.

Model	WS-C3560X-48P-S
Product Type	Switch – 48 ports – L3 – Managed
Enclosure Type	Rack mountable – 1U
Interfaces	48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE USB: 1 x 4 PIN USB Type A 1 x console – mini-USB Type B – management 1 x RS-232 – RJ-45 – management 1 x 10Base-T/100Base-TX – RJ-45 – management
DRAM Memory	256 MB
Flash Memory	64 MB Flash
Dimensions	44.5 x 46 x 4.5 cm.
Package Weight	7.5 Kg

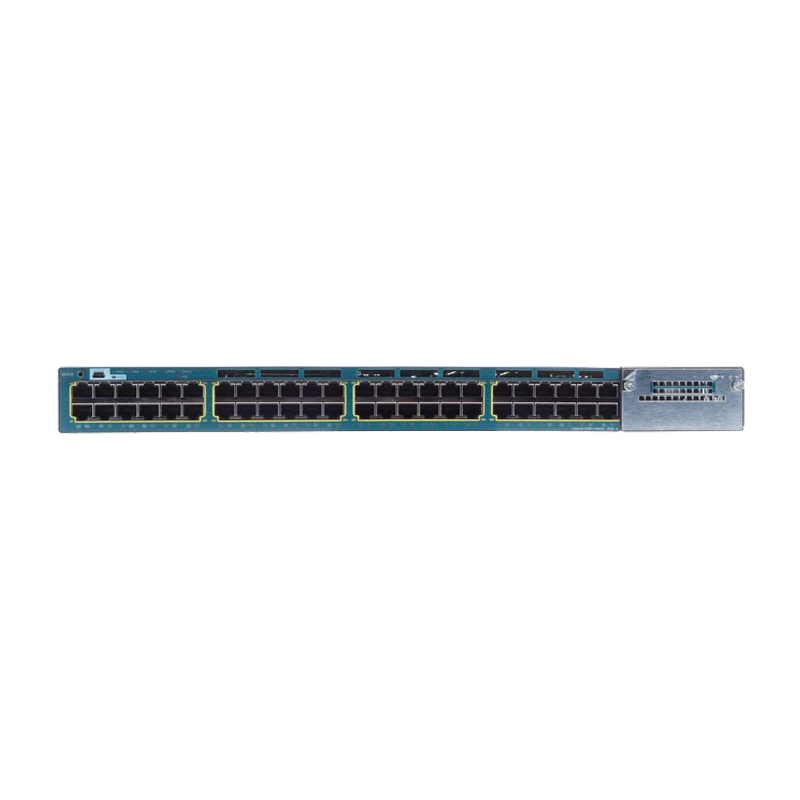

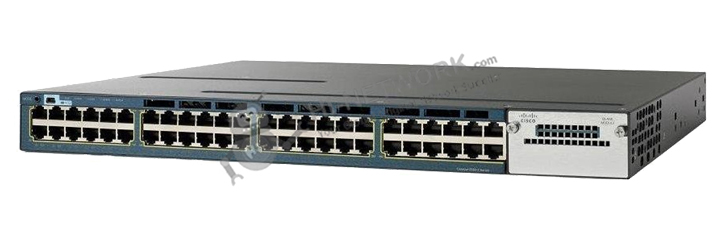

Figure 1 shows the appearance of the WS-C3560X-48P-S.

front-ws-c3560x-48p-s-datasheet

Product Details

The Accessories

Table 2 shows some accessories of the WS-C3560X-48P-S.

Model	Description
C3KX-NM-1G	Four GbE port network module
C3KX-NM-10G	Two 10GbE SFP ports network module with four physical ports with two SFP and two regular SFP ports
C3KX-NM-10GT	Two 10GB-T ports network module
C3KX-SM-10G	Service Module with two 10GbE SFP ports network module for Netflow and MACsec encryption

Table 3 shows the different power supplies available in these switches and available PoE power.

Default Power Supply	Models	Available PoE Power
C3KX-PWR-350WAC	24 Port Data Switch 48 Port Data Switch	-
C3KX-PWR-715WAC	24 Port PoE Switch 48 Port PoE Switch	435W
C3KX-PWR-1100WAC	48 Port Full PoE Switch	800W
C3KX-PWR-1100WAC	24 Port UPOE Switch 48 Port UPOE Switch	800W

Get More Information

Do you have any questions about the WS-C3560X-48P-S?

Specific Data Sheet:

WS-C3560X-48P-S Datasheet
Model	WS-C3560X-48P-S
Product Type	Switch – 48 ports – L3 – Managed
Enclosure Type	Rack mountable – 1U
Switch Ports	48 x 10/100/1000 Ethernet POE+ Ports
Power Over Ethernet (PoE)	Yes
Routing Protocol	OSPF stub, Eigrp Stub, PIM stub, RIP-1, RIP-2, HSRP, VRRP, GLBP, static IP routing, RIPng
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
DRAM Memory	256 MB
Flash Memory	64 MB Flash
Status Indicators	Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity Slots
Interfaces	48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE USB: 1 x 4 PIN USB Type A 1 x console – mini-USB Type B – management 1 x RS-232 – RJ-45 – management 1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slot(s)	1 (total) / 1 (free) x Expansion Slot
Power Supply
Power Device	Power supply – redundant – plug-in module
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Voltage Required	AC 120/230 V (50/60 Hz)
Features	Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Width	44.5 cm
Depth	46 cm
Height	4.5 cm
Weight	7.4 kg
Rack Mounting Kit	Optional
MTBF	149,594 hour(s)
Compliant Standards	CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
System Software
Software Included	Cisco IOS IP Base
