CISCO2951-SEC/K9 Security License Bundle Router

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Cisco 2951 Integrated Services Router (ISR) delivers highly secure data, voice, video, and application services for small offices. CISCO2951-SEC/K9 is almost the same as CISCO2951/K9, except that it offers Security bundle.

Quick Specification

Table 1 shows the Quick Specs of the CISCO2951-SEC/K9.

Product Code	CISCO2951-SEC/k9
Bundle	Security Bundle w/SEC license PAK
Rack Units	2U
Interfaces	3 integrated 10/100/1000 Ethernet ports with 1 port capable of RJ-45 or SFP connectivity
Expansion Slot(s)	2 service module slot 1 Internal Service Module slot 3 onboard digital signal processor slots 4 Enhanced high-speed WAN interface card (EHWIC) slots
RAM	512 MB (installed) / 2 GB (max) - DDR2 SDDRAM Memory
Flash Memory	256 MB (installed) / 8 GB (max)
Dimensions	47 cm x 43.8 cm x 8.9 cm
Package Weight	17.82 Kg

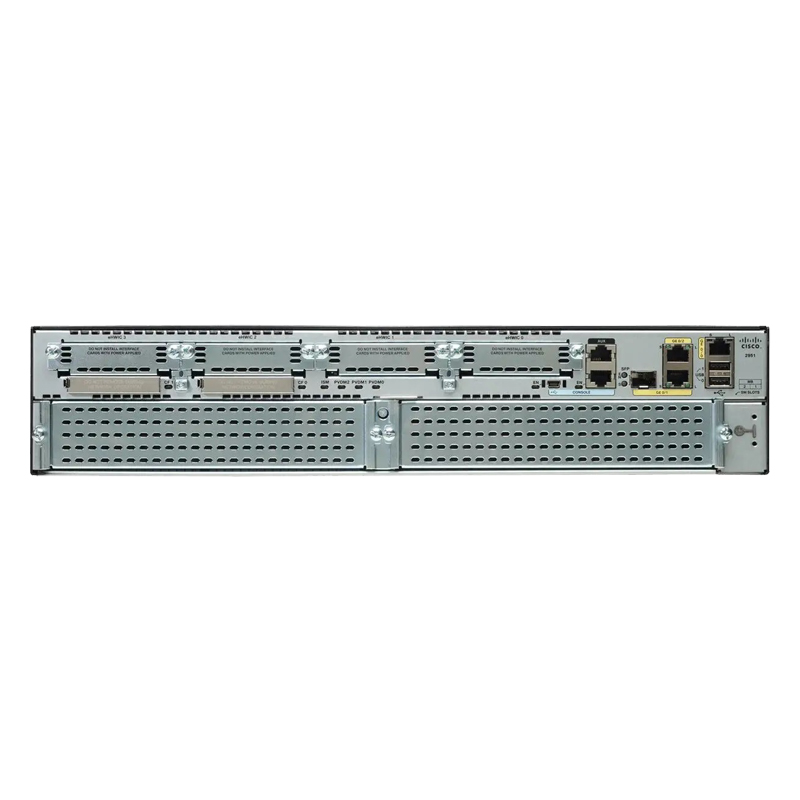

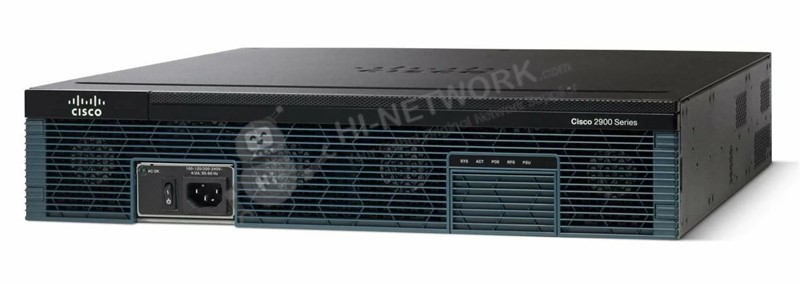

Figure 1 shows the appearance of the CISCO2951-SEC/K9

front-cisco2951-sec-k9-datasheet

Product Details

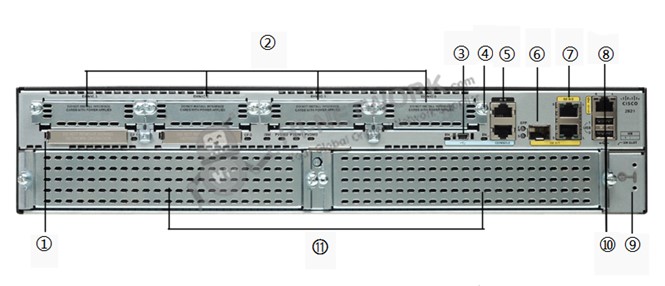

Figure 2 shows the ports on the back panel of CISCO2951-SEC/K9.

ports-cisco2951-sec-k9-datasheet

Note:

(1)	EHWIC slots 0,1,2, and 3 (0, Far right)	(7)	CompactFlash 0 and 1 (0, Right)
(2)	USB serial console port	(8)	Service module slots SM1 and SM2 (1, Right on 2951), (1, left on 2921)
(3)	AUX port	(9)	RJ-45 serial console port
(4)	SFP	(10)	USB0 and USB1 (1, Top)
(5)	10/100/1000 Ethernet ports (GE 0/1 and GE 0/2 (GE 0/2, Top)	(11)	Ground
(6)	10/100/1000 Ethernet port GE 0/0

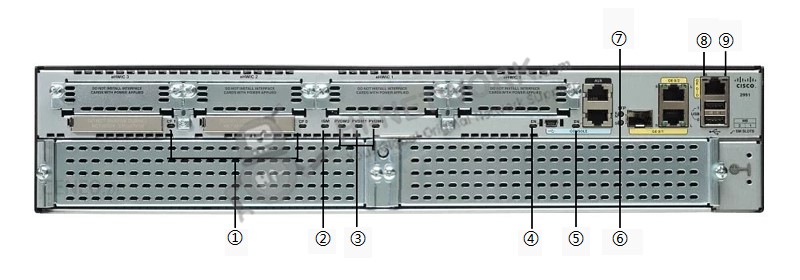

Figure 3 shows the LEDs on the back panel of CISCO2951-SEC/K9.

led-cisco2951-sec-k9-datasheet

Note:

(1)	CompactFlash 0 and 1 (0, Right)	(6)	SFP S
(2)	ISM	(7)	SFP EN
(3)	PVDM3 0,1, and 2 (0, Right)	(8)	S (Speed)
(4)	EN (Enable USB console)	(9)	L (Link)
(5)	EN (Enable RJ-45 console)

The Modules and Cards

Table 2 shows some recommended modules and cards for this router.

Models	Description
SM-ES3G-16-P	Enhanced EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology
SM-ES3G-24-P	Enhanced EtherSwitch Service Module, L2/L3 switching, 24 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology
VWIC3-2MFT-G703	Cisco Voice/WAN Card VWIC3-2MFT-G703
HWIC-2T	2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card
EHWIC-1GE-SFP-CU	Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU
EHWIC-4ESG	Four port 10/100/1000 Base-TXGigabit Ethernet switch interface card for Cisco1900 2900 3900Routers
ISM-SRE-300-K9	Internal Services Module (ISM) with Services Ready Engine
PVDM3-16	16-channel high-density voice DSP module
MEM-CF-256U1GB	256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900
MEM-CF-256U2GB	256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900
MEM-CF-256U512MB	256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR
MEM-CF-256U4GB	256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900
MEMUSB-1024FT	1GB USB Flash Token

Compare to Similar Items

Table 3 shows the comparison between CISCO2951-SEC/K9 and CISCO2951/K9.

Model	CISCO2951-SEC/K9	CISCO2951/K9
Interfaces	3 integrated 10/100/1000 Ethernet ports with 1 port capable of RJ-45 or SFP connectivity	3 integrated 10/100/1000 Ethernet ports with 1 port capable of RJ-45 or SFP connectivity
Memory	512 MB (installed) / 2 GB (max) - DDR2 SDDRAM Memory	512 MB (installed) / 2 GB (max) - DDR2 SDDRAM Memory
Flash	256 MB (installed) / 8 GB (max)	256 MB (installed) / 8 GB (max)
Bundle	Security Bundle w/SEC license PAK	None

Get More Information

Do you have any question about the CISCO2951-SEC/K9?

Specific Data Sheet:

CISCO2951-SEC/K9 Specification
Form Factor	External - modular - 2U
Dimensions (WDHP)	47 cm x 43.8 cm x 8.9 cm
DRAM Memory	512 MB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	TCP/IP, UDP/IP, RSVP, IPsec
Remote Management Protocol	SNMP, RMON
Features	Cisco IOS Security, firewall protection, hardware encryption, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Dynamic Multipoint VPN (DMVPN)
Compliant Standards	IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag
Power	AC 120/230 V (50/60 Hz)
Manufacturer Warranty	90 days warranty
