Price Hpe Proliant Dl388 Gen10 Server P23477-aa1 From China

HPE DL388 Gen10 Server (P23477-AA1) (8SFF)

USD

1875 ~~$2599~~ (28% OFF)

4.8 4.8/5.0 Reviews Q/A 66 Sold/Mon
>> 2U Rack Mounted Server >> Memory Slots: 24 >> Max Memory: 3 TB >> Original New HP DL388 Gen10 >> You can also customize DL388 server on Hi-network
Condition:	Factory Sealed New
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today,<br> your order will arrive within the<br> estimated delivery time.
Ships to: 46	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

HPE offical DL388 Gen10 8SFF provides 3 bundles, you may see as below. Buy the new quality HP DL360 G10 Server from Hi-Network.com located in HongKong China. We support global shipping. You can also customize your own config DL388 Gen10 server on this page.

- HPE DL388 Gen10 3206R (8-Core, 1.9 GHz, 85W) 1P 16G P408i-a NC 8SFF 500W PS Server
- HPE DL388 Gen10 4210R (10-Core, 2.4 GHz, 100W) 1P 16G P408i-a NC 8SFF 800W PS Server
- HPE DL388 Gen10 4214R (12-Core, 2.4 GHz, 100W) 1P 16G P408i-a NC 8SFF 800W PS Server

Product Details

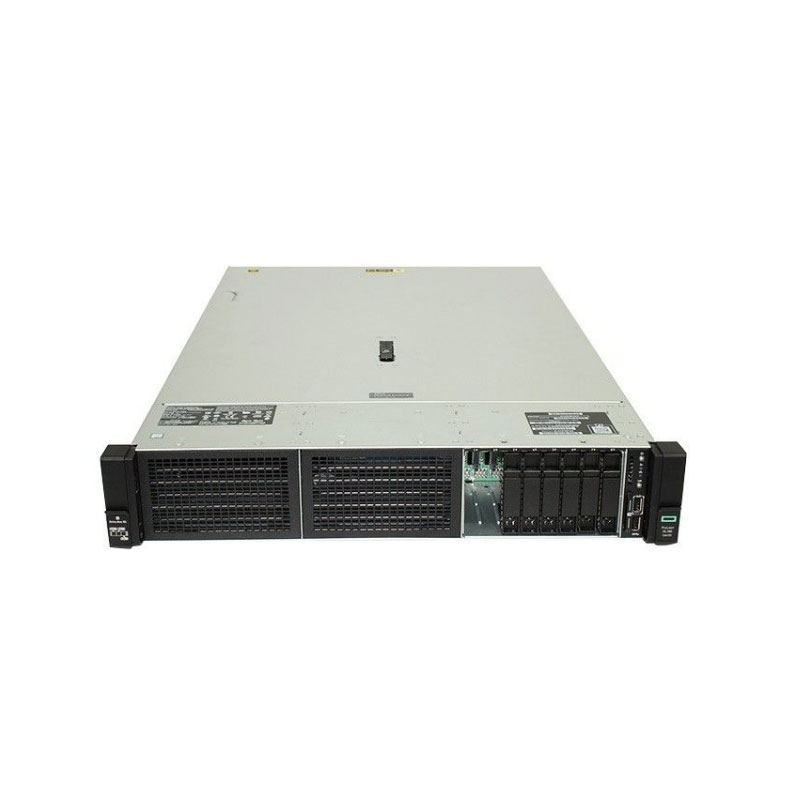

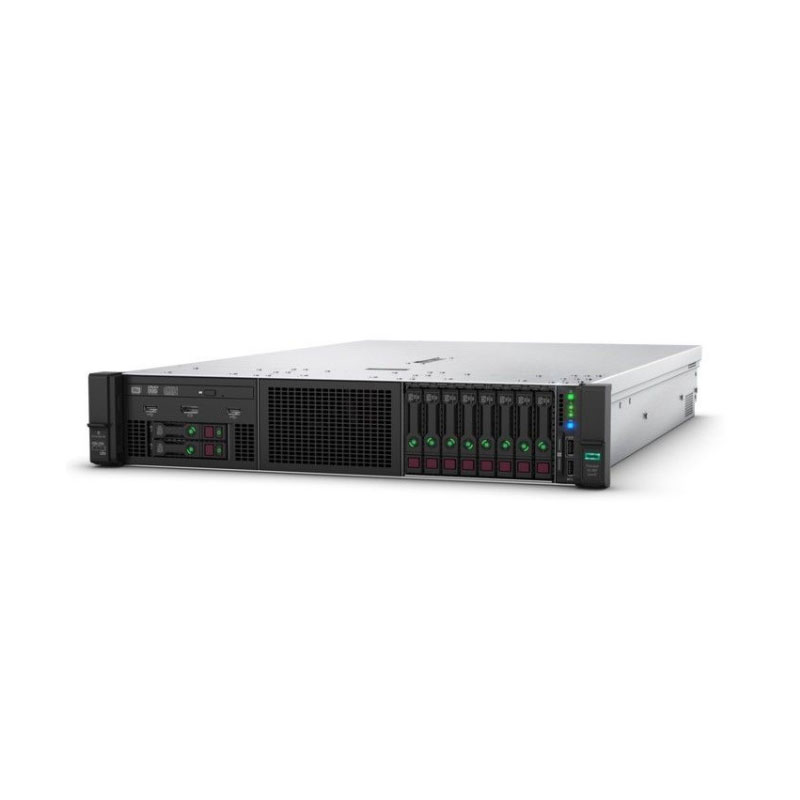

Figure 1 shows the HPE DL388 Gen10 8SFF front panel components.

hp-proliant-dl388-gen10-server-front-ports

Note:

①	Box 1 (optional drives or universal media bay, see figure 2)	③	Box 3 Drives 1-8	⑤	USB 3.0 port
②	Box 2 (optional drives)	④	Serial label pull tab or optional Systems Insight Display	⑥	iLO service port

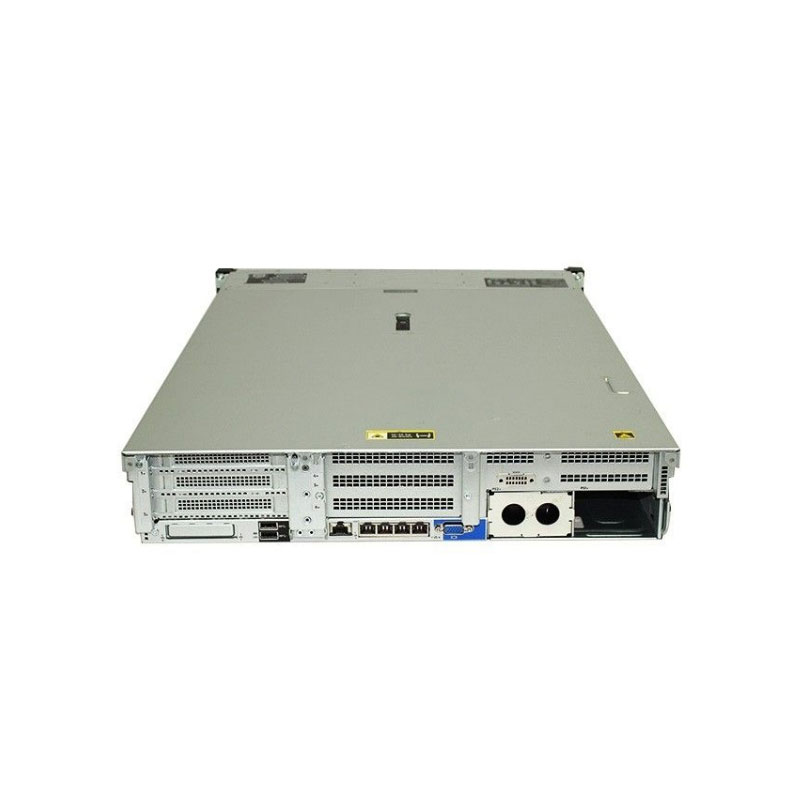

Figure 2 shows the rear panel components. These installed drives need to be purchased separately.

hp-proliant-dl388-gen10-server-back-ports

Note：

①	Primary riser slots 1-3 (Optional drive cage)	⑤	Power supply 2	⑨	iLO management port
②	Optional riser slots 4-6 (Optional drive cage)	⑥	Video port	⑩	USB 3.0 ports
③	Optional riser slots 7-8 (Optional drive cage)	⑦	Serial port (optional)*	⑪	FlexibleLOM slot
④	Power supply 1	⑧	1Gb RJ-45 ports 1–4

*When a tertiary riser cage is installed as shown, the serial port can be installed in riser slot 6.

Supported Hard Drives

Table 1 shows the supported SFF hard drives.

Model	Description
881457-B21	HPE 2.4TB SAS 12G 10K SFF SC 512e DS HDD
872481-B21	HPE 1.8TB SAS 10K SFF SC 512e DS HDD
872479-B21	HPE 1.2TB SAS 10K SFF SC DS HDD
870759-B21	HPE 900GB SAS 15K SFF SC DS HDD
870757-B21	HPE 600GB SAS 15K SFF SC DS HDD
872477-B21	HPE 600GB SAS 10K SFF SC DS HDD
832514-B21	HPE 1TB SAS 7.2K SFF SC DS HDD
P04566-B21	HPE 1.92TB SATA RI SFF SC DS SSD
P04564-B21	HPE 960GB SATA RI SFF SC DS SSD
P04560-B21	HPE 480GB SATA RI SFF SC DS SSD
P04556-B21	HPE 240GB SATA RI SFF SC DS SSD
P07926-B21	HPE 960GB SATA MU SFF SC DS SSD
P07922-B21	HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
875490-B21	HPE 480GB SATA MU M.2 2280 DS SSD
P09098-B21	HPE 400GB SAS WI SFF SC DS SSD
P13662-B21	HPE 1.92TB SATA MU SFF SC DS SSD

Get More Information

Do you have any question about the HPE DL388 Gen10 8SFF?

Brand	HPE
Model	DL388 Gen10
Warranty	3 Years
Processor	- Up to 2 Intel Xeon Scalable 8100/8200 Series
	Or Intel Xeon Scalable 6100/6200 Series
	Intel Xeon Scalable 5100/5200 Series
	Intel Xeon Scalable 4100/4200 Series
	Intel Xeon Scalable 3100/3200 Series
	- 4 to 28 cores, depending on models
Memory	24 × DDR4 DIMM slots, Supports RDIMMS/LRDIMMS, 3.0 TB with 128 GB DDR4; 6.0 TB with HPE 512 GB 2666 Persistent Memory kit
Storage Controllers	1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model
Drive Bays	8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD; 2 M.2 SATA SSD standard on primary riser, depending on configuration; 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF or 2 Dual UFF rear drive optional; 20 SFF NVMe optional; NVMe support via Express Bay will limit maximum drive capacity Max 459TB
Power Supplies	Up to 2 HPE Flexible Slot Power Supplies
Dimension	Imperial: 17.54 × 27.75 × 3.44 in
Dimension	Metric: 44.55 × 73.03 × 8.74 cm

Customer Reviews

Q1: What is Size and Gross weight for one new HPE DL388 Gen10 Plus server?

A1: 45*75*11cm of DL388 machine, gross weight is near to 40KGS per size.

Q2: What is the hard drives bays of HPE ProLiant DL388 Gen10 server?

A2: Official Standard is 960GB SAS of 2.5in SFF HDD (Max can be 30Bays of 2.5in SFF/ 19Bays of 3.5inch LFF). Of course, you can

extend the storage on Hi-network web.

Q3: What processors does DL388 Gen10 support?

A3: The DL388 Gen10 boosted its performance and scalability by using Intel’s Xeon Scalable Family of processors. This includes the Platinum 8100 series, both the Gold 6100 and 5100 series, the Silver 4100 series and the Bronze 3100 series processors.

Q4: How about memory of DL388 Gen10 Plus?

A4: 24 Slots of DDR4 max of speed 2933MT/s.

Q5: How many slots of PCIe ports of DL388 Gen10 Plus?

A5: Standard is 3 ports. You can max extend to 8 ports.

Q6: What Is the Delivery Time for The Server? Do you charge for the delivery services?

A6: Our web Hi-network.com have delivery cost estimate function. You can click “Add to Cart” and calculate the delivery cost. Delivery Time is normally 3-5 days for global shipping via DHL or Air. Also, you can use your own logistic agent in China.

Q7: Are your servers are 100% original new?

A7: Yes. Machine will come with sealed new box. Each machine has only one serial No., you can check the machine on Dell official link.

Q8: Do you Hi-Network support door-drop shipping?

A8: Yes, we have experience to export 105 countries till now. Global Air shipping with door-drop via DHL or Fedex. For those big size machines, sometimes we use Air shipping directly.
