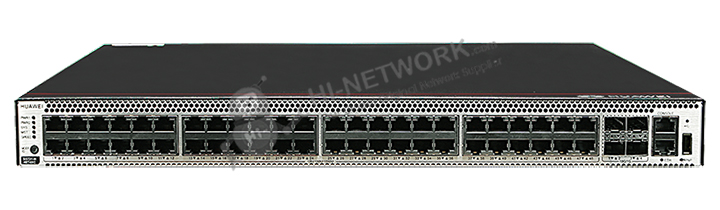

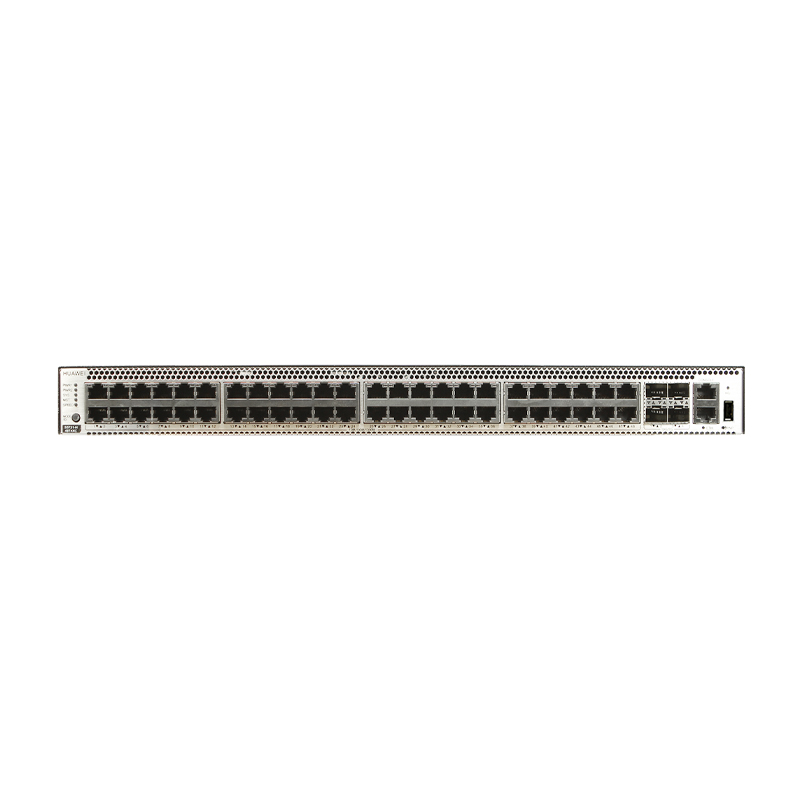

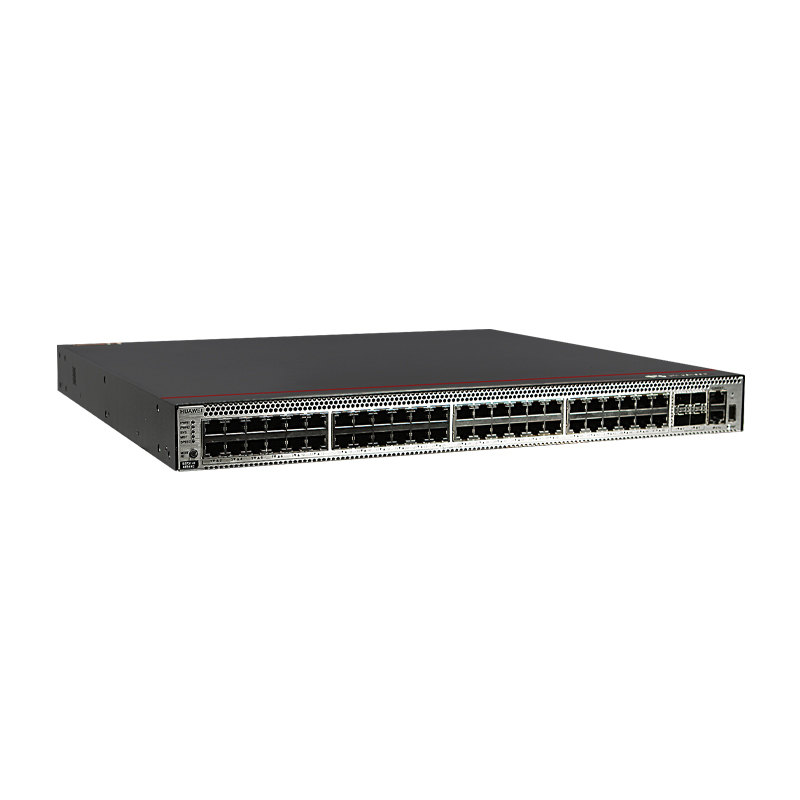

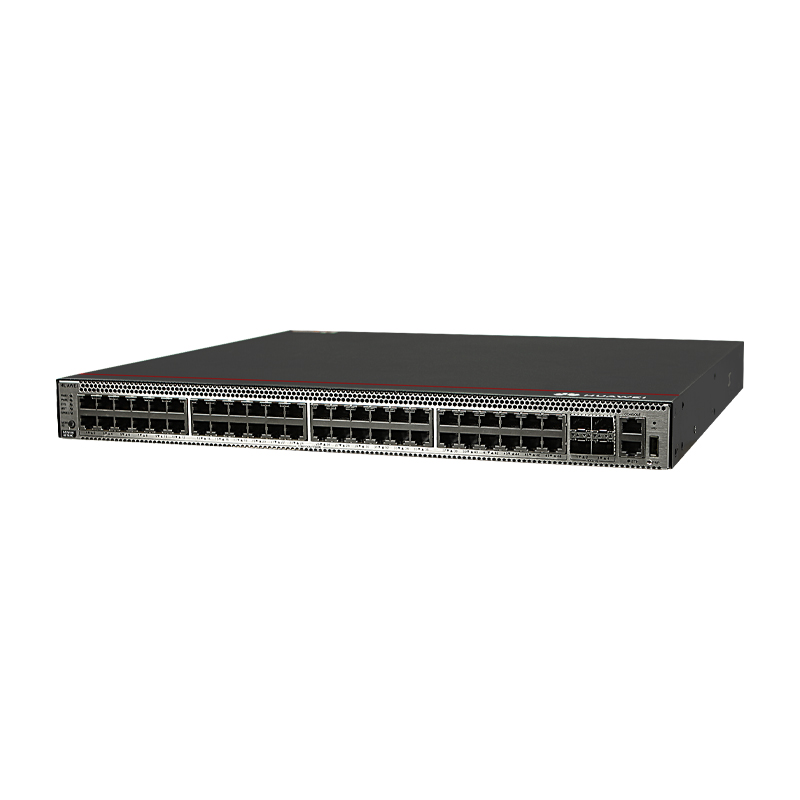

Model

S5731-H48T4XC-B

Part Number

02353VAD/02353VAD-003/02353VAD-005

Description

S5731-H48T4XC-B (44*Hybrid GE SFP ports, 4*Hybrid 10GE SFP+ ports, 4*10GE SFP+ ports, 1*expansion slot, PoE++, without power module)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.40 in. x 17.64 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)

Chassis height [U]

1

Weight without packaging [kg(lb)]

5.44 kg (11.99 lb)

Weight with packaging [kg(lb)]

8.55 kg (18.85 lb)

Typical power consumption [W]

82.89

Typical heat dissipation [BTU/hour]

282.83

Maximum power consumption [W]

130

Maximum heat dissipation [BTU/hour]

443.57

Static power consumption [W]

76.54

MTBF [years]

55.31

MTTR [hours]

2

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

59.9

Noise at normal temperature (acoustic pressure) [dB(A)]

49.4

Number of card slots

0

Number of power slots

2

Number of fans modules

2

Redundant power supply

1+1

Pluggable AC and DC power modules can be used together in the same switch.

Long-term operating temperature [°C(°F)]

-5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

Pluggable power supply

Rated input voltage [V]

- AC input: 100 V AC to 240 V AC; 50/60 Hz

- DC input: –48 V DC to –60 V DC

Input voltage range [V]

- AC input: 90–290 V AC; 45–65 Hz

- DC input: -38.4 V DC to -72 V DC

Memory

4 GB

Flash memory

1 GB in total. To view the available flash memory size, run the display version command.

Console port

RJ45

Eth Management port

RJ45

USB

Supported

RTC

Supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ±6 kV

Power supply surge protection [kV]

- AC power module configured: ±6 kV in differential mode, ±6 kV in common mode

- DC power module configured: ±2 kV in differential mode, ±4 kV in common mode

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

Pluggable

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from rear, air exhaustion from front (rear-to-front)

PoE

Not supported

Certification

EMC certification

Safety certification

Manufacturing certification
