EchoLife EG8245W5 EchoLife EG8245W5
  • EchoLife EG8245W5
  • EchoLife EG8245W5

Huawei EchoLife EG8245W5 ONT 2 POTS 4 GE 1 USB Wi-Fi

42 $60 (30.3% OFF)
Detail: Huawei EchoLife EG8245W5 ONT, 2POTS + 4GE + 2.4G/5G Wi-Fi + 1USB
Model: EchoLife EG8245W5
Condition: Factory Sealed New
Related: Huawei EchoLife EG8245W5-6T ONT 1 GPON 2 POTS 4 GE 1 USB Wi-Fi Huawei EchoLife EG8245W5-8T ONT 1 GPON 2 POTS 4 GE 1 USB Wi-Fi
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


The Huawei EchoLife EG8245W5 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.

It provides 4 GE+2 POTS+1 USB+2 WiFi (4 GE ports, 2 POTS ports, 1 USB port and 1 2.4G&5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-opticalaccess solution and future-oriented service support capability.

● Smart Service

● Smart Interconnection

● Smart O&M


Quick Specification


Table 1 shows the Quick Specification.

Model

OptiXstar EG8245W5

Dimensions (H x W x D)

32 mm x 200 mm x 127 mm (without external antenna and pads)

Weight

About 360 g

Operating Temperature

0°C to 40°C

Operating Humidity

5% RH to 95% RH (non-condensing)

Power Adapter Input

100–240 V AC, 50/60 Hz

System Power Supply

11–14 V DC, 1.5 A

Static Power Consumption

6 W

Maximum Power Consumption

18 W

NNI

GPON

UNI

2POTS + 4GE + 2.4G/5G Wi-Fi + 1USB

Optical Connector

SC/APC

Indicators

Power/PON/LOS/LAN/TEL/USB/WLAN/WPS

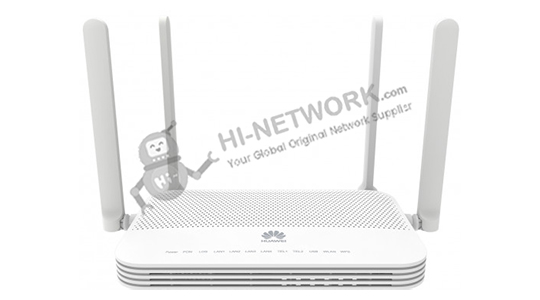

Figure 1 shows the appearance of EchoLife EG8245W5.

front-echolife-eg8245w5-datasheet


Product Details


Port Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27 dBm

● Overload optical power: -8 dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF) of G.984.5

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

● Type B (single-homing & dual-homing)

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

POTS Port

● G.711A/μ, G.729a/b and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

USB Port

● USB2.0

● FTP-based network storage

● File/Print sharing based on SAMBA

● DLNA function

WLAN

● IEEE 802.11 b/g/n (2.4G)

● IEEE 802.11 a/n/ac (5G)

● 2 × 2 MIMO (2.4G)

● 4 × 4 MIMO (5G)

● Antenna gain: 5 dBi

● WMM/Multiple SSIDs/WPS

● 2.4G&5G concurrent

● Air interface rate: 300 Mbit/s (2.4G), 1733 Mbit/s (5G)


Function List

Layer 3 Features

● PPPoE/Static IP/DHCP

● NAT/NAPT

● Port forwarding

● ALG, UPnP

● DDNS/DNS server/DNS client

● IPv6/IPv4 dual stack, and DS-Lite

● Static/Default routes

● Multiple services on one WAN port

Smart O&M

● IPTV video quality diagnosis

● eMDI

● Rogue ONT detection and isolation from the OLT

● Call emulation, and circuit test and loop-line test

● PPPoE/DHCP simulation testing

● WLAN emulation

Smart Interconnection

● Smart Wi-Fi coverage

● SIP/H.248 auto-negotiation

● Any port any service

● Parental control

● L2/L3 (IPv4) forwarding:1G uplink, 2G downlink

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

● Broadcast packet rate limitation

Common O&M

● OMCI/Web UI/TR069

● Variable-length OMCI messages

● Dual-system software backup and rollback

Smart Service

● Scheduled Wi-Fi shutdown

● Intelligent Wi-Fi sharing:

Portal/802.1x authentication

SoftGRE-based sharing

● Association of one account with two POTS ports

Security

● SPI firewall

● Filtering based on MAC/IP/URL addresses

Multicast

● IGMP v2/v3 proxy/snooping

● MLD v1/v2 snooping

Power Saving

● Indicator power saving

● COC V6

Smart Wi-Fi Coverage

● Configuration-free and PnP for Wi-Fi auxiliary devices (AP)

Home Network Feature

● Visualized home network management

● User-defined bandwidth allocation

● Band steering

● MU MIMO

● Wi-Fi optimization & Wi-Fi roaming

● Wi-Fi Operations & Maintenance (O&M)

● TX Beamforming


Get More Information

Do you have any question about the EchoLife EG8245W5?

Contact us now via [email protected].

Specific Data Sheet:


OptiXstar EG8245W5 Specification

Dimensions (H x W x D)

32 mm x 200 mm x 127 mm (without external antenna and pads)

Weight

About 360 g

Operating Temperature

0°C to 40°C

Operating Humidity

5% RH to 95% RH (non-condensing)

Power Adapter Input

100–240 V AC, 50/60 Hz

System Power Supply

11–14 V DC, 1.5 A

Static Power Consumption

6 W

Maximum Power Consumption

18 W

NNI

GPON

UNI

2POTS + 4GE + 2.4G/5G Wi-Fi + 1USB

Optical Connector

SC/APC

Indicators

Power/PON/LOS/LAN/TEL/USB/WLAN/WPS

GPON Port

● Class B+

● Receiver sensitivity: -27 dBm

● Overload optical power: -8 dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF) of G.984.5

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

● Type B (single-homing & dual-homing)

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

POTS Port

● G.711A/μ, G.729a/b and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

USB Port

● USB2.0

● FTP-based network storage

● File/Print sharing based on SAMBA

● DLNA function

WLAN

● IEEE 802.11 b/g/n (2.4G)

● IEEE 802.11 a/n/ac (5G)

● 2 × 2 MIMO (2.4G)

● 4 × 4 MIMO (5G)

● Antenna gain: 5 dBi

● WMM/Multiple SSIDs/WPS

● 2.4G&5G concurrent

● Air interface rate: 300 Mbit/s (2.4G), 1733 Mbit/s (5G)
