Huawei Fusion 2288H V5 Server 8*2.5inch (02311XBK) (H22H-05-S8AFF)

USD

1135 ~~$2445~~ (56% OFF)

4.8 4.8/5.0 Reviews Q/A 4 Sold/Mon
2288H V5 (82.5inch HDD Chassis, With 2GE and 2*10GE SFP+(Without Optical Transceiver)) H22H-05(For oversea)
Condition:	Factory Sealed New
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today,<br> your order will arrive within the<br> estimated delivery time.
Ships to: 40	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Part Number	02311XBK
Model	H22H-05-S8AFF
Description：	2288H V5 (82.5inch HDD Chassis, With 2GE and 2*10GE SFP+(Without Optical Transceiver)) H22H-05(For oversea)

Buy the factory slead new Huawei Server 2288H V5 from Hi-Network.com located in HongKong China. We support global shipping. You can also customize your own config 2288H V5 server on this page.

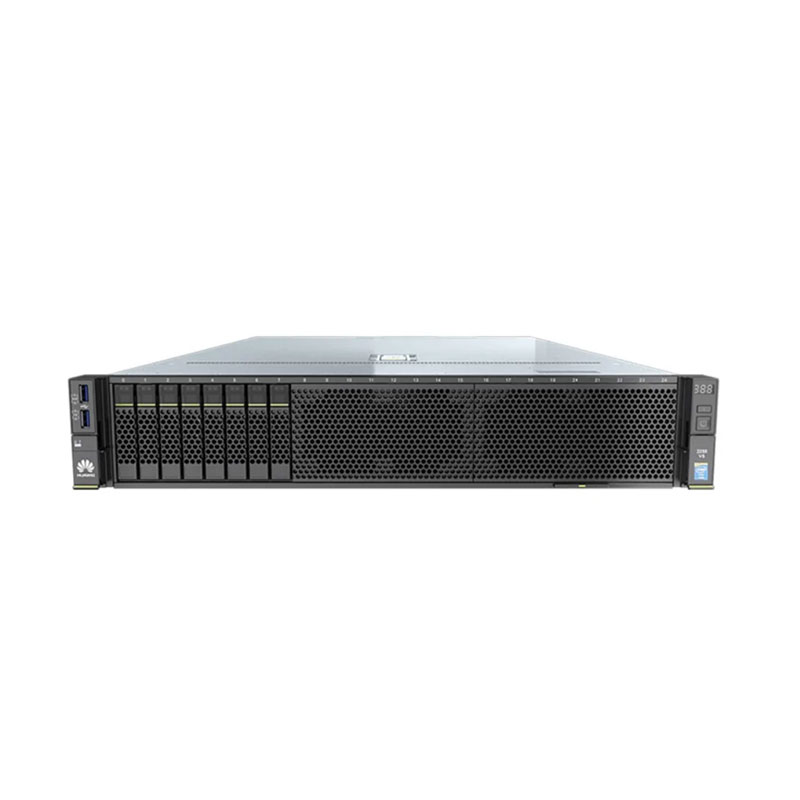

The Huawei FusionServer Pro 2288H V5 is an a 2U, 2-socket rack server. FusionServer Pro 2288H V5 has been verified by Intel as an Intel® Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing, virtualization, databases, HPC, and big data processing.

● Optimally Balanced Configuration with Ultra-Large Storage：Powered by Intel® Xeon® Scalable processors, supports 24 DDR4 DIMMs and up to 20 x 3.5-inch or 31 x 2.5-inch local hard drives.

● Smart Power Savings and Better Energy Efficiency：Leverages patented DEMT for smart power management, slashes power consumption by up to 15% without affecting performance, and uses 80 Plus® Titanium PSUs for better energy utilization.

● Unmatched Intelligent Manageability and Openness：Supports smart O&M across the entire lifecycle and FDM for diagnosis with accuracy of up to 93%; provides standardized and open interfaces, facilitating integration with third-party management software.

Description:

Model	FusionServer 2288H V5
Form Factor	2U, 2-socket rack server
Processors	1 or 2 full-series Intel® Xeon® Scalable Processors of up to 205W
Memory	24 DDR4 DIMM slots, up to 2,666 MT/s
Internal Storage	Supports the following hard drive configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs 12/16/20 x 3.5-inch SAS/SATA HDDs 4, 8, 12, 24, or 28 NVMe SSDs 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SSDs
RAID Support	RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for power-off protection for the cache (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports	FlexibleLOM: 2 GE or 4 GE, 2 x 10 GE, or 1 or 2 x 56 Gbit/s Fourteen Data Rate (FDR) InfiniBand (IB) interfaces
PCIe Expansion	Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC.
Fan Modules	4 hot-swappable counter-rotating fan modules with optional N+1 redundancy
Power Supply Units	2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1): 550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs
Management	Based on the Huawei iBMC chip, provides comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening; supports mainstream standard interfaces such as Redfish, SNMP, and IPMI 2.0, facilitating integration with third-party management software; provides remote management interfaces based on HTML5 and VNC KVM; supports features such as Smart Provisioning and Agentless to simplify management. Optionally configured with Huawei eSight management software; provides advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automated entire-lifecycle management.
Operating Temperature	5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
Certifications	CE, UL, FCC, CCC, and RoHS
Installation suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	Chassis with 3.5-inch hard drives: 86.1 mm x 436 mm x 748 mm (3.39 in. x 17.17 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 436 mm x 708 mm (3.39 in. x 17.17 in. x 27.87 in.)
Special Notices	Note 1: The 1,200W and 1,500W PSUs are planned for release in Q3, 2018. The Titanium PSU is planned for release in Q1, 2019.

FusionServer Pro 2288H V5 Rack Server Base Configuration

02131255	WEPW55000	550W platinum AC Power Module
02312DEP	PAC550S12-BE	PAC550S12-BE AC power supply unit
02311TLF	PAC900S12-BE	PAC900S12-BE AC power supply unit
02131336	WEPW15K01	1500W Enhanced Platinum AC Power Module
02312DAE	PAC1500S12-BE	1500W AC Power Module Spare Part
02312GEN	PDC1200S1201	1200W DC_Power_Supply Module (including DC_power line)
02312BEC	BC1M02MSMA	SR230-M,Avago3004,M.2 RAID PCIE card-RAID0,1,JBOD,Support Sideband Management,PCIE 3.0 X8,No Cache,HH/HL
02312BLQ	BC1M02M2FRU	M.2 SSD,SATA 6Gb/s-32GB,Hot-Swappable
02312EKX	BC1M04M2FRU	M.2 SSD,SATA 6Gb/s-240GB,Hot-Swappable

Huawei Fusion 2288H V5 Server 8*2.5inch (02311XBK) (H22H-05-S8AFF) Price and Datasheet

Part#	02311XBK
Module#	H22H-05-S8AFF
Description	2288H V5 (82.5inch HDD Chassis, With 2GE and 2*10GE SFP+(Without Optical Transceiver)) H22H-05(For oversea)
Package Weight (Kg)	18.2KGS
Package Volume (m^3)	0.15902
*Package Dimension (DWH mm)*	945635265
*Net Dimension (DWH mm)*	74844786
Price (USD)	US$1,135
Product Line	Enterprise Intelligent Computing
Product Family	Enterprise Intelligent Computing
Sub Product Family	FusionServer
Product Series	2288H V5
