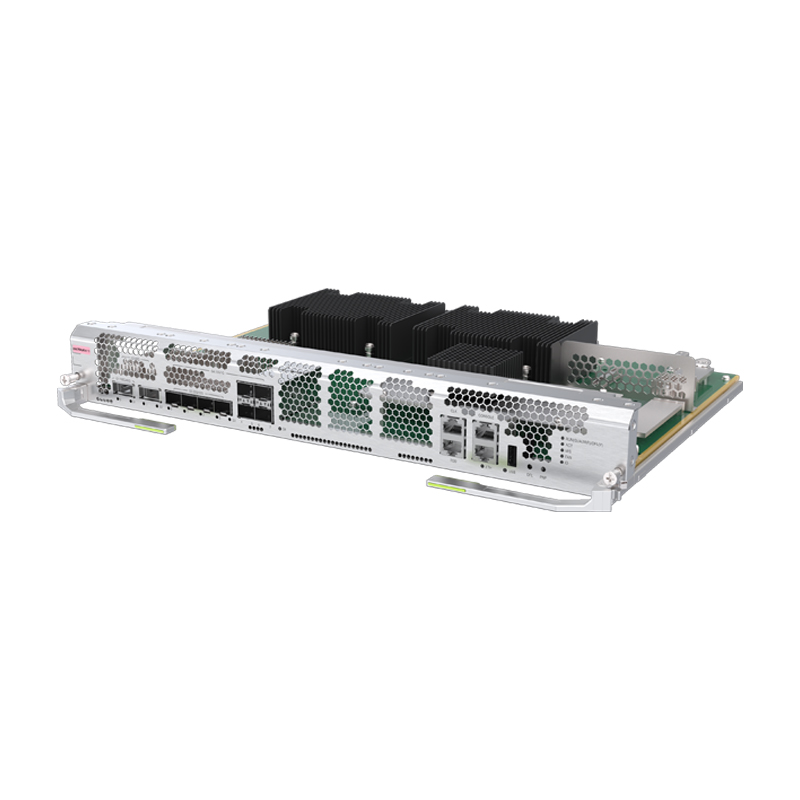

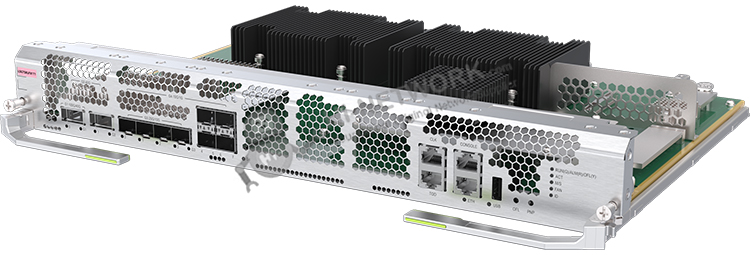

Model

LSG7SRUFX1T1

Part Number

03050GWW, 03050GWW-001

Description

S8700-10 main control unit F, supporting 1*100G QSFP28, 2*40G QSFP+, 4*25G SFP28, or 8*10G SFP+ ports (HTM), Enhanced

Level-1 category

MPU

Technical Specifications

Dimensions without packaging (H x W x D) [mm(in.)]

55.4 mm x 433.0 mm x 292.9 mm (2.18 in. x 17.05 in. x 11.53 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

190.0 mm x 590.0 mm x 470.0 mm (7.48 in. x 23.23 in. x 18.50 in.)

Weight without packaging [kg(lb)]

4.01 (8.84)

Weight with packaging [kg(lb)]

6.31 (13.91)

Typical power consumption [W]

156

Typical heat dissipation [BTU/hour]

532.29

Maximum power consumption [W]

241

Maximum heat dissipation [BTU/hour]

822.33

Memory

8GB (not expandable)

Storage

SATA: 8 GB by default; built-in
Independent SATA slot reserved for capability expansion

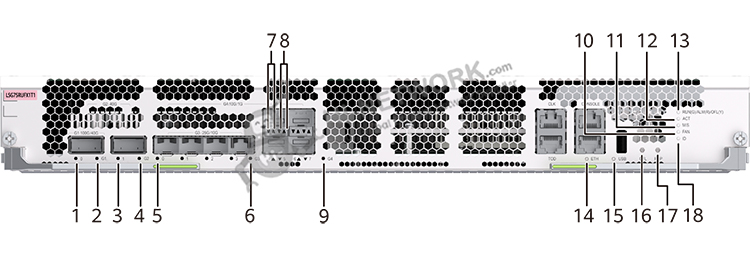

(2)

100GE port group indicator

(11)

CSS status indicator

(3)

LINK/ACT indicator of the 40GE port

(12)

Active/Standby status indicator

(4)

40GE port group indicator

(13)

Running status indicator

(5)

LINK/ACT indicator of the 25GE/10GE port

(14)

LINK/ACT indicator of the management Ethernet port

(6)

25GE port group indicator

(15)

USB-based deployment indicator

(7)

ACT indicator of the 10GE port

(16)

OFL button

(8)

LINK indicator of the 10GE port

(17)

PNP button

(9)

10GE port group indicator

(18)

ID indicator

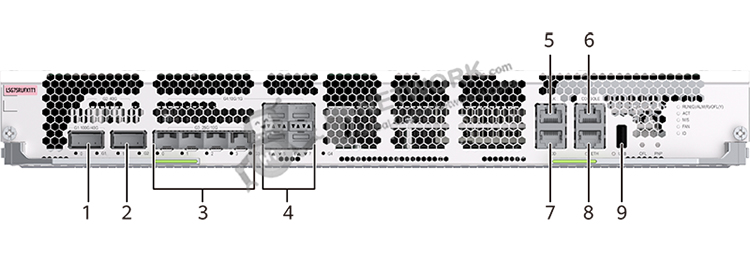

(2)

QSFP+ optical port

(7)

External synchronization port TOD

(3)

SFP28 optical port

(8)

ETH management port

(4)

SFP+ optical port

(9)

USB port

(5)

External synchronization port CLK
