Huawei OptiXstar K562e ONT Wi-Fi or GE Uplink

USD

72 ~~$90~~ (20.0% OFF)

Detail:	Huawei OptiXstar K562e ONT, Wi-Fi or GE, Wi-Fi uplink: 4 x GE + 2.4G and 5G Wi-Fi 6/GE uplink: 3 x GE + 2.4G and 5G Wi-Fi 6
Model:	OptiXstar K562e
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Huawei OptiXstar K562e is a dual-band edge Optical Network Terminal (ONT) that supports gigabit access over both Wi-Fi 6 and GE network ports.

Embedded Artificial Intelligence (eAI) acceleration enhances the online experience for value-added services, such as online games, online education, and teleconferencing. The ONT also features next generation Wi-Fi 6 Multi-User Multiple-Input Multiple-Output (MU-MIMO) technology, over the industry-leading 160 MHz spectrum.

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar K562e
Dimensions (H x W x D)	35 x 195 x 125 mm
Weight (Without Power Adapter)	< 500 g
Operating Temperature	0–40°C
Operating Humidity	5–95% RH (non-condensing)
System Power Supply	12 V DC, 1 A
Power Adapter Input	100–240 V AC, 50/60 Hz
Maximum Power Consumption	< 12 W
Memory	128 MB Flash, 256 MB RAM
NNI	Wi-Fi or GE
UNI	Wi-Fi uplink: 4 x GE + 2.4G and 5G Wi-Fi 6 GE uplink: 3 x GE + 2.4G and 5G Wi-Fi 6
Installation Mode	Desk/Wall-mounted
Antenna Type	2 x external antennas

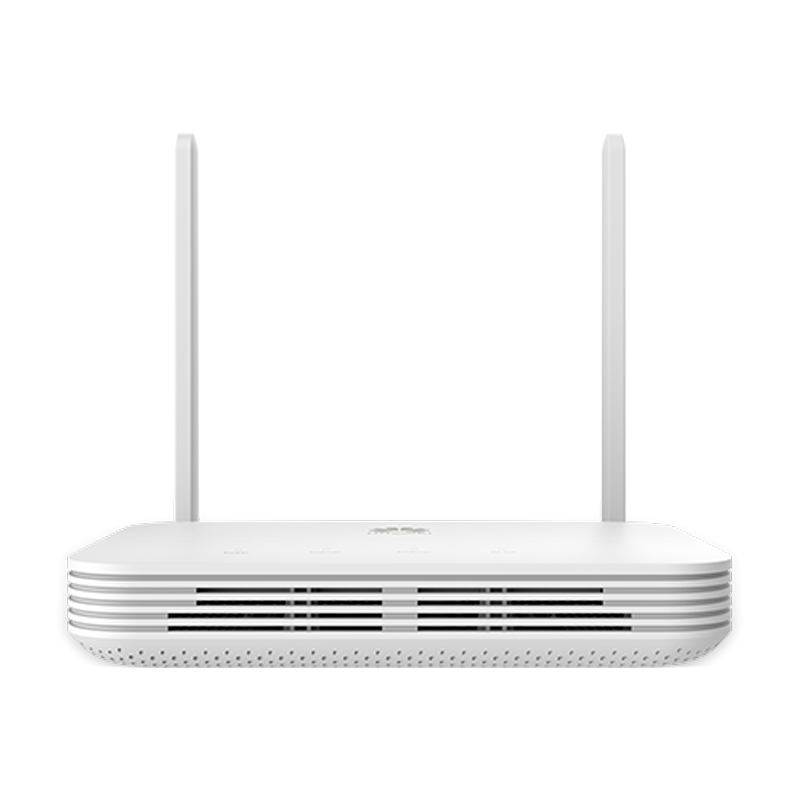

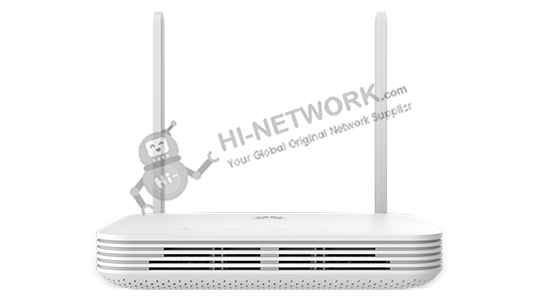

Figure 1 shows the appearance of OptiXstar K562e.

overview-optixstar-k562e-datasheet

Product Details

Interface Parameters

Ethernet Electrical Port

Limit on the number of learned MAC addresses

MAC address learning

Auto port speeds (10/100/1000 Mbit/s)

Wi-Fi

Supported protocol: IEEE 802.11 ax (2.4G & 5G)

Antenna gain: 5 dBi

MIMO: 2x2 MIMO (2.4G & 5G)

Air interface rate: 600 Mbit/s (2.4G) and 2400 Mbit/s (5G)

Others:

1024-QAM, 160 MHz channel width, WPA3, and DL MU MIMO

Get More Information

Do you have any question about the OptiXstar K562e?

Specific Data Sheet:

OptiXstar K562e Specification
Dimensions (H x W x D)	35 x 195 x 125 mm
Weight (Without Power Adapter)	< 500 g
Operating Temperature	0–40°C
Operating Humidity	5–95% RH (non-condensing)
System Power Supply	12 V DC, 1 A
Power Adapter Input	100–240 V AC, 50/60 Hz
Maximum Power Consumption	< 12 W
Memory	128 MB Flash, 256 MB RAM
NNI	Wi-Fi or GE
UNI	Wi-Fi uplink: 4 x GE + 2.4G and 5G Wi-Fi 6 GE uplink: 3 x GE + 2.4G and 5G Wi-Fi 6
Installation Mode	Desk/Wall-mounted
Antenna Type	2 x external antennas
Ethernet Electrical Port	Limit on the number of learned MAC addresses MAC address learning Auto port speeds (10/100/1000 Mbit/s)
Wi-Fi	Supported protocol: IEEE 802.11 ax (2.4G & 5G) Antenna gain: 5 dBi MIMO: 2x2 MIMO (2.4G & 5G) Air interface rate: 600 Mbit/s (2.4G) and 2400 Mbit/s (5G) Others: 1024-QAM, 160 MHz channel width, WPA3, and DL MU MIMO
