Model

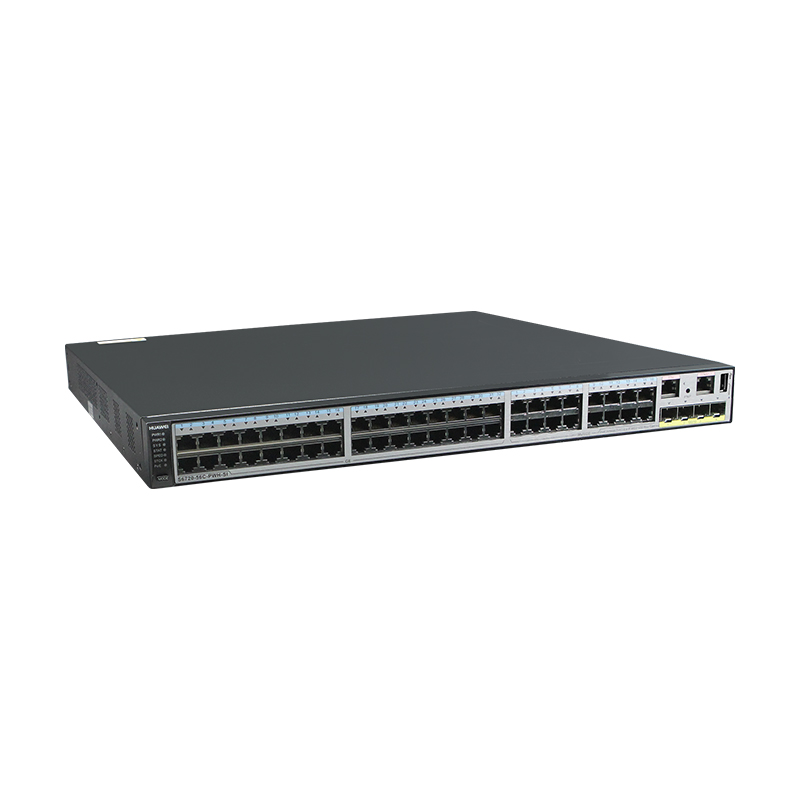

S6720-56C-PWH-SI

Memory (RAM)

1 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

23.9 years

Mean time to repair (MTTR)

2

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

Using 580 W AC or 1000 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode

Using 650 W DC power modules: ±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.)

When 1150 W power modules are installed, they stretch out from the chassis. Therefore, the total depth of the switch changes to 541.1 mm (21.3 in.).

Weight (with packaging)

8.3 kg (18.3 lb)

Stack ports

Any MultiGE, 10GE SFP+, or 40GE QSFP+ ports (a maximum of 16 physical ports)

RTC

Supported

RPS

Not supported

PoE

Supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

Using 650 W DC power modules or 580 W AC power modules

Not providing the PoE function: 120.5 W (without card)

100% PoE loads: 1068.1 W (system power consumption: 328.9 W, PoE: 739.2 W, without card)

Using 1150 W AC or 1000 W AC power modules

Not providing the PoE function: 120.5 W (without card)

100% PoE loads: 1995.4 W (system power consumption: 555.4 W, PoE: 1440 W, without card)

Typical power consumption (30% of traffic load, tested according to ATIS standard)

91.01 W (not providing the PoE function, without card)

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 62.1 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
