Original New IE-4000-8GT4G-E Switch 8 RJ45 GE, 4 1G Combo=

USD

3560 ~~$6995~~ (50.9% OFF)

Detail:	IE 4000 8 x RJ45 10/100/1000, 4 x 1G Combo , LAN Base
Model:	IE-4000-8GT4G-E
Condition:	Original New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 15.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

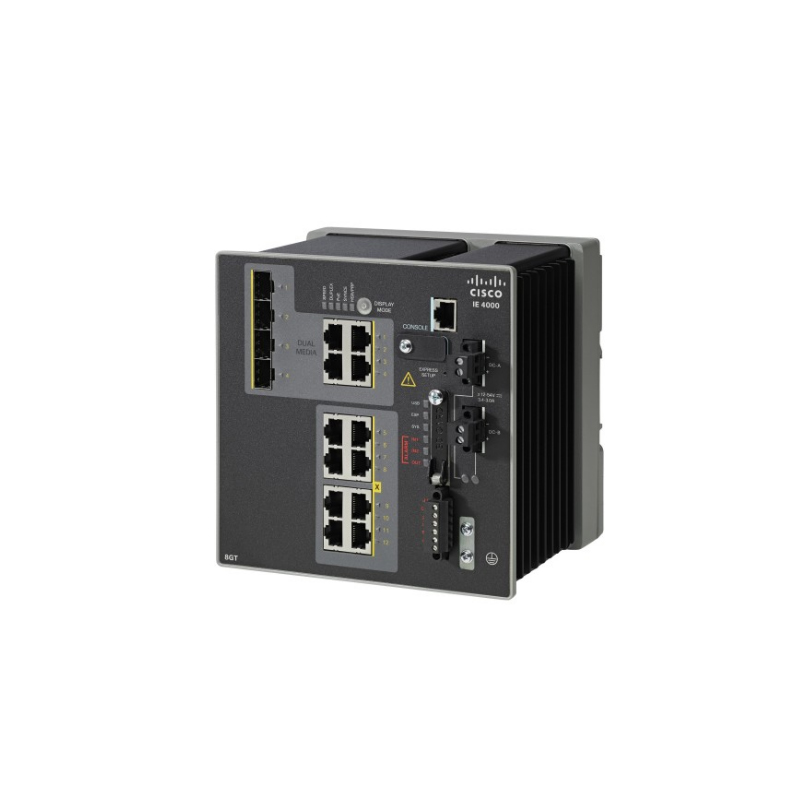

IE-4000-8GT4G-E Switch 8 x RJ45 GE, 4 x 1G Combo

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

IE-4000-8GT4G-E is an IE4000 series switch providing 8 x RJ45 10/100/1000, 4 x 1G Combo, and LAN Base. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including manufacturing, energy, transportation, smart cities. The IE4000 has built-in SW image verification to ensure authenticity of the Cisco Software. With improved overall performance, greater bandwidth, advanced security features, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.

Quick Specification:

Part Number	IE-4000-8GT4G-E
Total Ports	12
GE combo uplinks (4G)	4 GE combo uplink ports
SFP fiber ports (S)	8 GE
Default software	LAN Base feature set
Dimensions (H x W x D)	6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
Weight	6.35 pounds (2.88 kg)

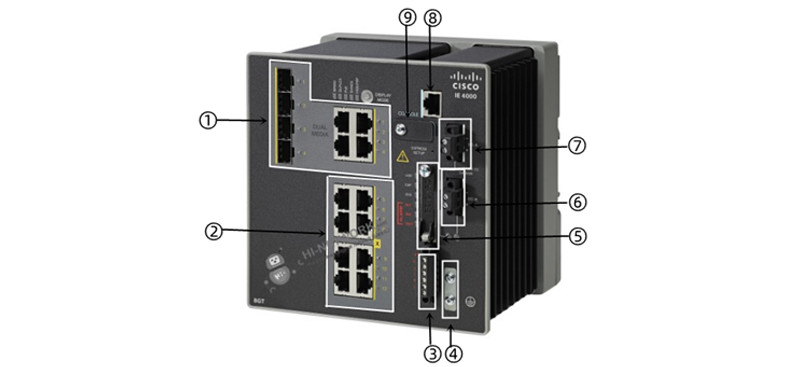

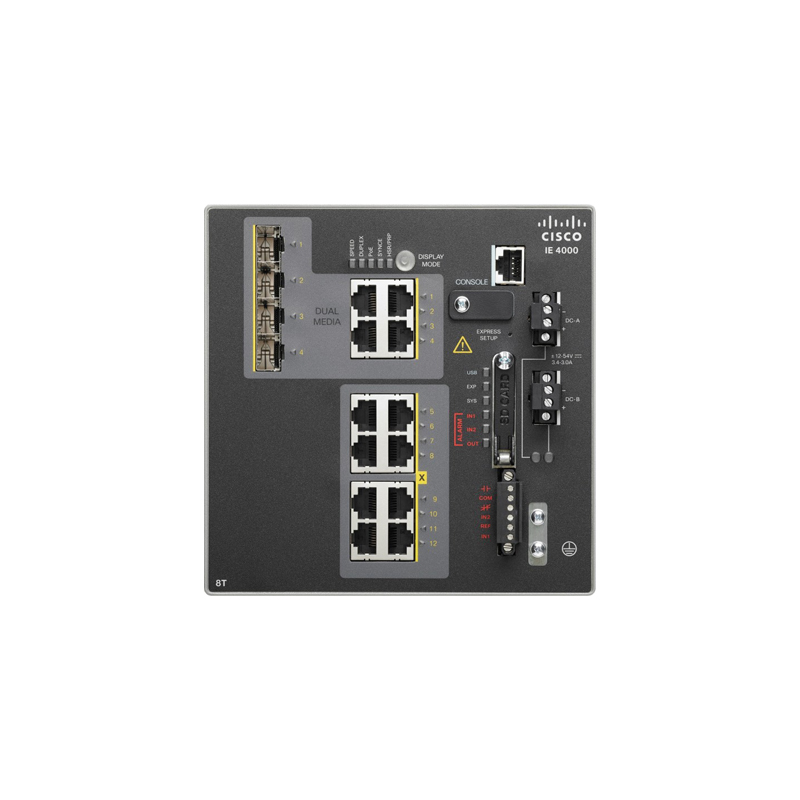

The Front Panel:

①	4 GE combo uplink ports
②	8GE SFP fiber ports
③	Alarm connector
④	Protective ground connection
⑤	Flash memory card slot
⑥	Power connector DC-B
⑦	Power connector DC-A
⑧	RJ-45 console port
⑨	USB mini-Type B (console) port (Use a screwdriver to remove the port cover and access the port.)

The Back Panel:

The Accessories for IE-4000-8GT4G-E

Modules and Cables:

Models	Description
L-IE4000-RTU=	Electronic IP SERVICES License for IE4000 Switches
C1F1PIE4K5K1K9	Cisco ONE Foundation Perpetual - IE 4000/5000
C1A1PIE40001K9	Cisco ONE Advanced Perpetual - IE 4000
GLC-SX-MM-RGD	Cisco GLC-SX-MM-RGD 1000Mbps Multi-Mode Rugged SFP
GLC-BX40-U-I	1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1550-nm RX wavelength, single LC/PC connector
GLC-TE	1000BASE-T SFP transceiver module for Category 5 copper wire
GLC-ZX-SM	1000BASE-ZX SFP
GLC-BX-U	1000BASE-BX SFP, 1310NM
SFP-GE-L	1000BASE-LX/LH SFP (DOM)
GLC-ZX-SMD	Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM
GLC-SX-MMD	Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
GLC-FE-100EX	100BASE-EX SFP (40km)
GLC-FE-100BX-U	100BASE-BX10-U SFP

Compare To Similar Items:

Part Number	IE-4000-8GS4G-E	IE-4000-16T4G-E
Total ports	20	20
GE combo uplinks (4G)	4 GE combo uplink ports	4 GE combo uplink ports
RJ-45 copper ports (T)	N/A	16 FE
SFP fiber ports (S)	8 GE	N/A
Default software	LAN Base feature set	LAN Base feature set

Get More Information

Do you have any question about the IE-3300-8GS4G-E?

Specific Data Sheet:

Physical Specification
Total ports	12
GE combo uplinks (4G)	4 GE combo uplink ports (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)
SFP fiber ports (S)	8 GE
Default software	LAN Base feature set (Can be upgraded to IP Services at a fee.)
Hardware	● 1GB DRAM ● 128-MB onboard flash memory ● 1-GB removable SD flash memory card ● Mini-USB connector ● RJ-45 connector
Alarms	Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
Power inputs	● Redundant DC input voltage with operating range: nominal 9.6 to 60VDC ● Maximum DC input current: 5A
Power consumption	42W
Dimensions (H x W x D)	6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
Weight	6.35 pounds (2.88 kg)
Switch performance and scalability
Forwarding rate	Line rate for all ports and all packet sizes
Number of queues	4 egress
Unicast MAC addresses	16,000
Internet Group Management Protocol (IGMP) multicast groups	1,000
No. of VLANs	1,000
IPv4 MAC security ACEs	1,000 with default TCAM Template
NAT translation	Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
