Huawei EchoLife EG8040P (98030913) GPON ONU 4GE PoE

USD

302

5 5/5.0 Reviews Q/A 5 Sold/Mon
Detail:	Huawei EchoLife EG8040P ONT, intelligent bridging-type ONT, 4GE PoE
Model:	EchoLife EG8040P (98030913)
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.57	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Name: Huawei EchoLife EG8040P (98030913) GPON ONU 4GE PoE
Brand: hi-network
Rating: 5 (36 reviews)

The Huawei EchoLife EG8040P is an Optical Network Terminal (ONT) used in Huawei's AgilePOL solution. By using GPON technology, ultra-broadband access is provided for enterprise campuses.

It provides 4 GE ports that support PoE functions. The high forwarding performance ensures the user experience of VOIP, internet and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife EG8040P
Dimensions (H x W x D)	42 mm x 254 mm x 140 mm
Operating Temperature	-40°C to 55°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	90V to 264V AC, 50 Hz/60 Hz
System Power Supply	56V DC, 1.42A
Network-side Ports	GPON
User-side Ports	4 x GE (PoE) + 2 x POTS
Indicators	POWER/PON/LOS/LAN/TEL
Maximum PoE Output Power	Gross power 60W (up to 30W for one GE port)

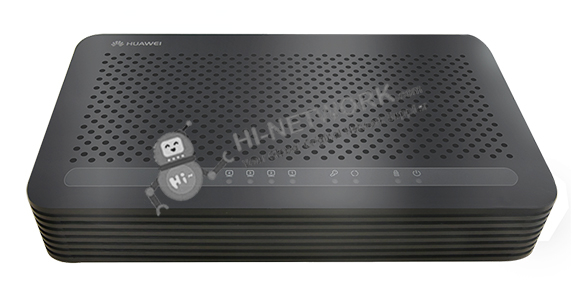

Figure 1 shows the appearance of EchoLife EG8040P.

appearance-echolife-eg8040p-datasheet

Product Details

Port Parameters

GPON Port

● SFF optical module, SC/UPC connector

● ITU-T G.984.2 CLASS B+

● Upstream data rate 1.244Gbit/s，1310nm optic

● Downstream data rate 2.488Gbit/s，1490nm optic

● Bi-directional FEC (Forward Error Correction)

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

Ethernet Electrical Port

● PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at

● RJ-45 connector

● Auto ports speed (10/100/1000 Mbit/s)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned

● VLAN transparent transmission/ VLAN filtering

● QinQ VLAN

Product Function

Automatic Service Provisioning

● Authentication exemption

● XML/OMCI/TR069

Smart O&M

● XML/Web UI

● Rogue ONT detection

● Ring network detection

● PPPoE /DHCP emulation testing

● Y.1731

Layer 3 Features

● Default/Static/Policy/Service routes

● VLAN binding

● ALG/UPnP/ARP

● DDNS/DMZ/DNS/NAPT

● PPPoE/Static IP/DHCP/DHCP Option66

● Port mapping/Port trigger

Layer 2 Management

● DHCP Option82

● PITP

● BPDU transparent transmission

● LLDP/LLDP-MED

Multicast

● IGMP v2/v3 snooping

● Dynamic controllable multicast

● IGMP proxy

● MLDv1/MLDv2 snooping

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

Security

● Filtering based on MAC/IP/URL

● DoS/ARP anti-attacks

● Session number restriction

● Device access control

● 802.1x

● Static MAC address binding

Get More Information

Do you have any question about the EchoLife EG8040P?

Specific Data Sheet:

EchoLife EG8040P Specification
Dimensions (H × W × D)	42mm × 254mm × 140mm
Operating temperature	-40°C to +55°C
Operating humidity	5%RH to 95%RH, non-condensing
Power adapter input	100V to 240V AC, 50Hz/60Hz
System power supply	56V DC, 1.42A
UNI	4*GE (PoE)
NNI	GPON
Static power consumption	4W
Typical power consumption	6W (PoE port without PD)
Maximum power consumption	8W (PoE port without PD) 71W (PoE port with PD having the maximum power consumption)
Maximum PoE output power	Gross power 60W (up to 30 W for one GE port)
Surge protection specifications	GE port: common mode 4 kV; differential mode 0.5 kV. AC power supply: common mode 6 kV; differential mode 6 kV.
GPON Port	● SFF optical module, SC/UPC connector ● ITU-T G.984.2 CLASS B+ ● Upstream data rate 1.244Gbit/s，1310nm optic ● Downstream data rate 2.488Gbit/s，1490nm optic ● Bi-directional FEC (Forward Error Correction)
Ethernet Electrical Port	● PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at ● RJ-45 connector ● Auto ports speed (10/100/1000 Mbit/s) ● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● VLAN transparent transmission/ VLAN filtering ● QinQ VLAN
