H801MCUD
  • H801MCUD

Huawei H801MCUD MA5600T Control Boards

248
4.8
4.8/5.0
Q/A
3 Sold/Mon
Detail: Huawei SmartAX MA5600T Control Unit Board (GE Uplink)
Model: H801MCUD
Condition: Factory Sealed New
Related:
Warranty:
1-Year Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
2.5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


The H801MCUD board is an integrated optical-copper mini control unit board. It is the core for system control and service switching and aggregation, and is used for MA5608T subrack.


Quick Specification


Model

H801MCUD

LAN switch

24 x GE + 4 x 10GE

Switching capacity

• 128 Gbit/s (active/standby mode)

• 256 Gbit/s (load sharing mode)

Bandwidth per slot

• 10 Gbit/s (active/standby mode)

• 20 Gbit/s (load sharing mode)

MAC address table

32768

Access ONT

• Before the V800R015C10 version: 2048

• V800R015C10 and later versions: 4096

Multicast user

4096

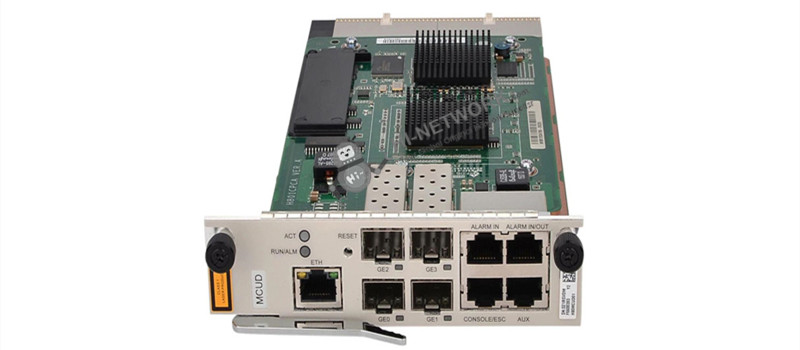

Appearance:

h801mcud-datasheet

Product Details:


H801MCUD provides these benefits:
· Supports up to 256 Gbit/s switching capacity
· Supports active/standby mode and load sharing mode, doubling processing performance
· Supports ISSU, saving the upgrade interruption time
· Supports synchronization Ethernet
H801MCUD provides these external interfaces:
· Management interfaces
- CONSOLE/ESC (RJ-45)
- CONSOLE: RS-232 serial port.
- ESC: RS-485 monitoring serial port
- ETH (RJ-45): 10/100M Base-T maintenance network port
- AUX (RJ-45), Reserved
- ALARM IN/OUT (RJ-45): 7 alarm digital inputs and 1 alarm digital output
· Communication Interfaces
- GE0 to GE3 (4 x SFP GE ports): Used for upstream transmission or cascading


Compare to Similar Items:


Model

H801MCUD

H801SCUH

LAN switch

24 x GE + 4 x 10GE

48 x10GE

Switching capacity

• 128 Gbit/s (active/standby mode)

• 256 Gbit/s (load sharing mode)

• 960 Gbit/s (active/standby mode)
• 1920 Gbit/s (load sharing mode)

Bandwidth per slot

• 10 Gbit/s (active/standby mode)

• 20 Gbit/s (load sharing mode)

• 20 Gbit/s (active/standby mode)
• 40 Gbit/s (load sharing mode)

MAC address table

32768

131072

Access ONT

• Before the V800R015C10 version: 2048

• V800R015C10 and later versions: 4096

16384


Get more information

Do you have any question about the H801MCUD?

Contact us now via [email protected].

Specific Data Sheet:


Model

H801MCUD

LAN switch

24 x GE + 4 x 10GE

Switching capacity

•128 Gbit/s (active/standby mode)
• 256 Gbit/s (load sharing mode)

Bandwidth per slot

• 10 Gbit/s (active/standby mode)
• 20 Gbit/s (load sharing mode)

MAC address table

32768

Access ONT

• Before the V800R015C10 version: 2048
• V800R015C10 and later versions: 4096

Multicast user

4096

Number of static programs configurable

4096

Maximum number of online programs supported

2000

IPv4 routing table

5120

IPv6 routing table

5120

Service port

20480

ARP table

8192

ACL rule

ACLv4: 768; ACLv6: 256

Maximum Frame Size

2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.

VRF (L3 VPN)

Supported

Environment

Operating temperature

-40° C to +65° C

Power consumption

Static: 24 W

Maximum: 26 W
