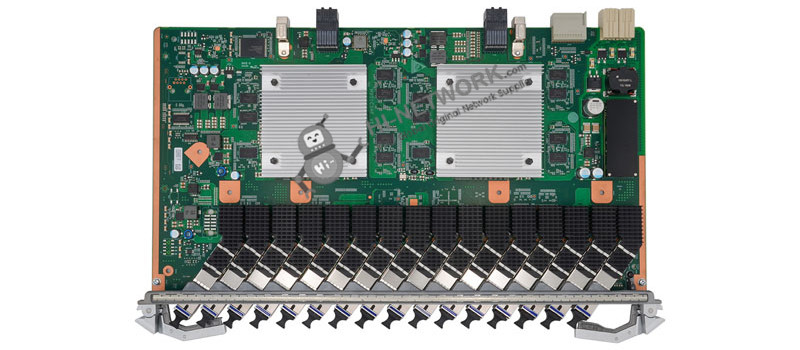

Detail: | Huawei SmartAX MA5800 H901CGHF 16-port XG-PON and GPON Combo OLT interface board |
Model: | H901CGHF |
Condition: | Factory Sealed New |
Related: | |
Warranty: |
1-Year Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
3.5
|
2-7 Days
US$
|
Payment: |
More
|
Huawei SmartAX MA5800 H901CGHF 16-port XG-PON and GPON Combo OLT interface board
Model | H901CGHF |
GPON Port | 16 XG-PON & GPON ports |
Forwarding Capality | 200 Gbit/s |
Rate mode | Asymmetric rate |
T-CONTs per PON port | GPON: 1024 XG-PON: 2048 |
Service flows per PON board | 16352 |
Maximum frame size | 2052 bytes 9216 bytes (jumbo frame enabled) |
Maximum number of MAC addresses | 131072 |
Do you have any question about the H901CGHF?
Contact us now via [email protected].
Specific Data Sheet:
Model | H901CGHF |
Service ports | |
GPON Port | 16 XG-PON & GPON ports |
Forwarding Capality | 200 Gbit/s |
Rate mode | Asymmetric rate |
T-CONTs per PON port | GPON: 1024 XG-PON: 2048 |
Service flows per PON board | 16352 |
Maximum frame size | 2052 bytes 9216 bytes (jumbo frame enabled) |
Maximum number of MAC addresses | 131072 |
Maximum distance difference between two ONUs under the same PON port | 40 km |
FEC | Bidirection |
CAR group | Supported |
HQoS | Supported |
Variable-length OMCI | Supported |
ONU-based shaping or queue-based shaping | Supported |
Type B protection(dual-homing) | Supported |
Type B protection(single-homing) | Supported |
Type C protection(dual-homing) | Supported(applicable to GPON channels) |
Type C protection(single-homing) | Supported(applicable to GPON channels) |
1588v2 | Supported |
Rogue ONT detection and isolation | Supported |
Automatic shutdown at high temperature | Supported |
Energy saving for service boards | Supported |
D-CCAP | Not supported |
GPON SFP Module Specification | |
Type | One-fiber bi-directional optical module C+ One-fiber bi-directional optical module N2a |
Operating Wavelength | GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm |
Encapsulation Type | SFP+ |
Port Rate | GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
Minimum Output Optical Power | N2a: GPON channel: 3 dBm XG-PON channel: 4 dBm C+: GPON channel: 3 dBm XG-PON channel: 5 dBm |
Maximum Output Optical Power | N2a: GPON channel: 7 dBm XG-PON channel: 8 dBm C+: GPON channel: 7 dBm XG-PON channel: 8 dBm |
Maximum Receiver Sensitivity | N2a: GPON channel: -32 dBm XG-PON channel: -29.5 dBm C+: GPON channel:-32dBm XG-PON channel:-30.5dBm |
Optical Connector Type | SC |
Optical Fiber Type | Single-mode |
Overload Optical Power | N2a: GPON channel: -12 dBm XG-PON channel: -9 dBm C+: GPON channel: -12 dBm XG-PON channel: -10 dBm |
Extinction Ratio | 8.2 dB |
Device Specifications | |
Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
Power Consumption and Maximum Frame Size | |
Power Consumption | Static: 48 W Maximum: 106 W |
Operating temperature | -40°C to +65°C |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
