Service ports

GPON Port

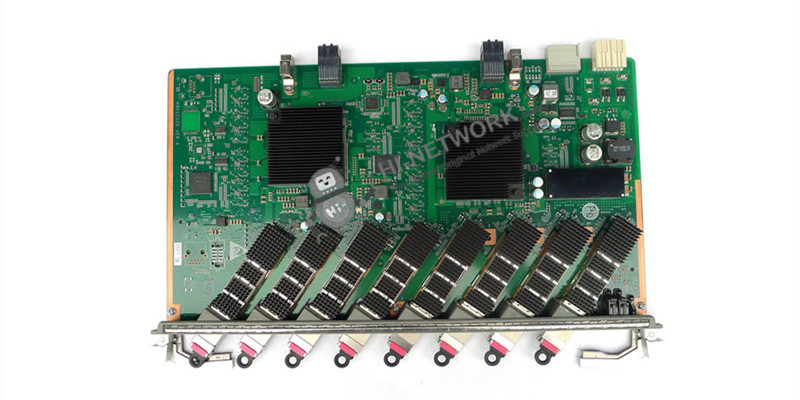

8 XG-PON & GPON ports

GPON SFP+ Module Specification

Type

One-fiber bidirectional optical module, N2a

Operating Wavelength

GPON channel:

Tx: 1490 nm

Rx: 1310 nm

XG-PON channel:

Tx: 1577 nm

Rx: 1270 nm

Encapsulation Type

XFP

Port Rate

GPON channel:

Tx: 2.488 Gbit/s

Rx: 1.244 Gbit/s

XG-PON channel:

Tx: 9.953 Gbit/s

Rx: 2.488 Gbit/s

Minimum Output Optical Power

GPON channel: 3 dBm

XG-PON channel: 4 dBm

Maximum Output Optical Power

GPON channel: 7 dBm

XG-PON channel: 8 dBm

Maximum Receiver Sensitivity

GPON channel: -32 dBm

XG-PON channel: -29.5 dBm

Optical Connector Type

SC

Optical Fiber Type

Single-mode

Overload Optical Power

GPON channel: -12 dBm

XG-PON channel: -9 dBm

Extinction Ratio

8.2 dB

Function

Forwarding capability

80 Gbit/s

Rate mode

Asymmetric rate

T-CONTs per PON port

GPON: 1024

XG-PON: 2048

Service flows per PON board

16368

Maximum frame size

2052 bytes

9216 bytes (jumbo frame enabled)

Maximum number of MAC addresses

131072

Maximum distance difference between

two ONUs under the same PON port

40 km

Device Specifications

Dimensions (W x D x H)

23.30 mm * 257.90 mm * 399.20 mm

Power Consumption and Maximum Frame Size

Power Consumption

Static: 48 W

Maximum: 78 W

Operating temperature

-40°C to +65°C
