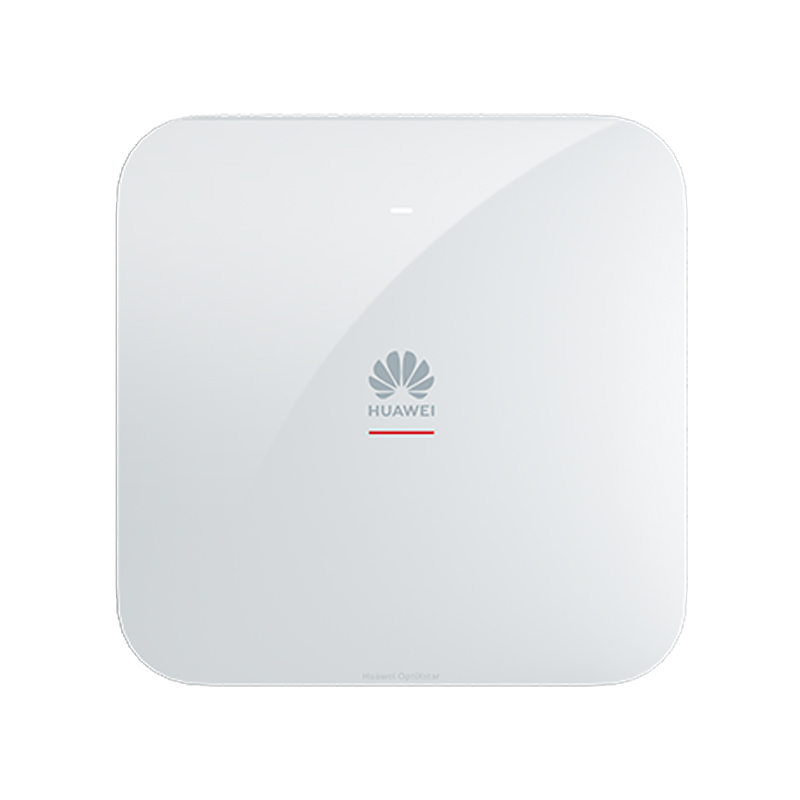

Detail: | Huawei OptiXstar W826E, an Intelligent XGS-PON and Wi-Fi 6 ONU, 4 x GE + 1 x POTS + 2.4 GHz and 5 GHz Wi-Fi 6 |
Model: | OptiXstar W826E |
Condition: | Factory Sealed New |
Related: | |
Warranty: |
3-Years Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
0.7
|
2-7 Days
US$
|
Payment: |
More
|
The Huawei OptiXstar W826E is an enterprise XGS-PON and Wi-Fi 6 Optical Network Unit (ONU). It supports ultra-broadband access through the optical/electrical composite cable. This directly addresses the issue of terminals being unable to adequately obtain power. The ONU also provides users with voice services, gigabit network ports, and gigabit dual-band Wi-Fi 6 access modes.
● Next generation Wi-Fi 6 technology
● Supports optical fiber upstream transmission.
● Optical/electrical composite cable PoF power supply
● Fit/FAT management mode
● Strong anti-interference, wide coverage, and network self-healing
Model | OptiXstar W826E |
Dimensions (H x W x D) | 230 mm × 230 mm × 35 mm |
Weight | About 702 g |
Operating Ambient Temperature | -10°C - 45°C |
Operating Ambient Humidity | 5% RH to 95% RH, non-condensing |
Rated Input Range of The Power Adapter | 100 - 240V AC, 50/60 Hz |
Power Supply to The Entire System | ● Adapter: 12V DC, 2A ● PoF: 48 V DC, 0.5 A |
Static Power Consumption | 8.6 W |
NNI | XGS-PON |
UNI | 4*GE+1*POTS+2.4GHz&5GHz WiFi 6 |
Optical Fiber Interface | SC/UPC |
Indicators | One running indicator |
Antenna Type | Built-in antenna |
Storage | 128 MB FLASH, 256 MB RAM |
Surge Protection Specifications | ● PoF: 4 kV in common mode, 1.5 kV in differential mode ● LAN: common mode 2.5 kV ● POTS: common mode 2.5 kV ● AC power supply: 6 kV in common mode and 6 kV in differential mode |
XGS-PON Port | ● Interface type: SC/UPC ● Transmission rate: 9.953 Gbit/s in the downlink and 9.953 Gbit/s in the uplink ● Receiver sensitivity: -28 dBm ● Overload optical power: –9 dBm ● Type B (single-homing & dual-homing) NOTE: If the optical power is greater than the overload optical power, the device may be damaged. In this case, connect an optical attenuator. |
Gigabit Ethernet port | ● MAC address limit ● MAC address learning ● Gigabit Ethernet ports support 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s auto-sensing |
Support Protocols | ● IEEE 802.11 b/g/n/ax(2.4GHz) ● IEEE 802.11 a/n/ac/ax(5GHz) |
MIMO | 2×2 MIMO (2.4GHz&5GHz) |
Antenna Gain | 2dBi |
Air Interface Rate | 574 Mbps (2.4GHz) 2402 Mbps (5GHz) |
Maximum Number of SSIDs on the Radio | 4 |
Maximum Number of Users on The Radio | A maximum of 64 per frequency band |
Maximum Transmit Power on The Radio | 2.4GHz: 26dBm 5GHz: 29dBm |
Others | 1024-QAM, 60MHz bandwidth, WPA3, DL MU MIMO |
Network Management | ● Visualized management ● User-defined bandwidth allocation ● Wi-Fi Optimization & Wi-Fi Roaming ● Wi-Fi O&M ● Intelligent identification and anti-jamming |
Smart Service | ● Anti-squatter ● Scheduled Wi-Fi shutdown ● Smart Wi-Fi sharing: Portal/802.1x authentication; SoftGRE-based sharing |
Power Saving | ● Indicator power saving ● COC V7.1 |
Security | ● SPI firewall ● Anti-DoS attack ● Filtering based on MAC/IP/URL addresses ● Supports 802.1X authentication |
Smart O&M | ● IPTV video quality diagnosis (VMOS & eMDI) ● Rogue ONT detection and isolation from the OLT ● Call emulation, and circuit test and loop-line test ● PPPoE/DHCP simulation testing ● One-click diagnosis (Web) |
Multicast | ● IGMP v2/v3 snooping ● IGMP v2/v3 proxy ● MLD v1/v2 snooping |
Layer 3 Features | ● PPPoE/Static IP/DHCP ● NAT/NAPT ● Port forwarding ● ALG, UPnP ● DDNS/DNS server/DNS client ● IPv6/IPv4 dual stack, DSLite and IPv6 SPI ● Static/Default routes ● Multiple services on one WAN port |
WLAN Security | ● Open system authentication ● WEP authentication/encryption is supported. The encryption word length is 64-bit or 128-bit ● WPA2-PSK authentication/encryption (WPA2 Personal Edition) ● WPA2-802.1X authentication/encryption (WPA2 Enterprise Edition) ● WPA3-SAE authentication and encryption (WPA3 personal edition) ● WPA3-802.1X authentication/encryption (WPA3 Enterprise Edition) ● Supports WPA-WPA2 hybrid authentication. ● Supports WPA2-WPA3 hybrid authentication. ● Supports 802.1X authentication, MAC address authentication, and Portal authentication. ● Supports Wi-Fi management frame encryption. |
Common O&M | ● OMCI/Web UI/TR069 ● Variable-length OMCI messages ● Dual-system software backup and rollback |
Smart Interconnection | ● Smart Wi-Fi coverage ● SIP/H.248 autonegotiation ● Any pport, anyservice |
QoS | ● Priority-based data processing and forwarding based on the mapping and priority scheduling rules of Wi-Fi Multimedia (WMM) standards ● Supports WMM power saving mode and Airtime scheduling ● Supports Airtime scheduling |
Do you have any question about the OptiXstar W626E?
Contact us now via [email protected].
Specific Data Sheet:
OptiXstar W826E Specification | |
Dimensions (H x W x D) | 230 mm × 230 mm × 35 mm |
Weight | About 702 g |
Operating Ambient Temperature | -10°C - 45°C |
Operating Ambient Humidity | 5% RH to 95% RH, non-condensing |
Rated Input Range of The Power Adapter | 100 - 240V AC, 50/60 Hz |
Power Supply to The Entire System | ● Adapter: 12V DC, 2A ● PoF: 48 V DC, 0.5 A NOTE: The copper cable in the optical/electrical composite cable uses the PoE protocol to supply power and does not transmit data. |
Static Power Consumption | 8.6 W |
Maximum Power Consumption | 21.6 W |
Buttons | Reset button |
NNI | XGS-PON |
UNI | 4*GE+1*POTS+2.4GHz&5GHz WiFi 6 |
Optical Fiber Interface | SC/UPC |
Indicators | One running indicator |
Antenna Type | Built-in antenna |
Storage | 128 MB FLASH, 256 MB RAM |
Installation mode | Ceiling-mounted or wall-mounted |
Certification | SRRC/CE/Wi-Fi Alliance/CCC/MIIT network access |
Degree of protection | IP20 |
Surge Protection Specifications | ● PoF: 4 kV in common mode, 1.5 kV in differential mode ● LAN: common mode 2.5 kV ● POTS: common mode 2.5 kV ● AC power supply: 6 kV in common mode and 6 kV in differential mode |
XGS-PON Port | ● Interface type: SC/UPC ● Transmission rate: 9.953 Gbit/s in the downlink and 9.953 Gbit/s in the uplink ● Receiver sensitivity: -28 dBm ● Overload optical power: –9 dBm ● Type B (single-homing & dual-homing) NOTE: If the optical power is greater than the overload optical power, the device may be damaged. In this case, connect an optical attenuator. |
Gigabit Ethernet port | ● MAC address limit ● MAC address learning ● Gigabit Ethernet ports support 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s auto-sensing |
