Aruba AP-505 (RW) (R2H28A) 802.11ax Internal Antennas Access Point


R2H28A is the Aruba AP-505 (RW) - Campus - wireless access point. These affordable Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of mobile, IoT and mobility requirements. With a maximum aggregate data rate of 1.77 Gbps (1.774 Gbps), they deliver the speed and reliability needed for venues and workplaces such as schools, midsize offices and retailers.


Quick Specification


Table 1 shows the Quick Specification.

Model

R2H28A

Series

Aruba AP-505

AP type

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO

Description

AP-505 (RW) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP

5GHz radio

Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices

2.4GHz radio

Two spatial stream Single User (SU) MIMO for up to 574Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices

Antenna

2 Internal Omni-directional 5.7 DBi Antenna

Maximum No. of associated client devices

Up to 256 associated client devices per radio

Supported data rates (Mbps)

● 802.11b: 1, 2, 5.5, 11

● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM

● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM

● 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

● 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

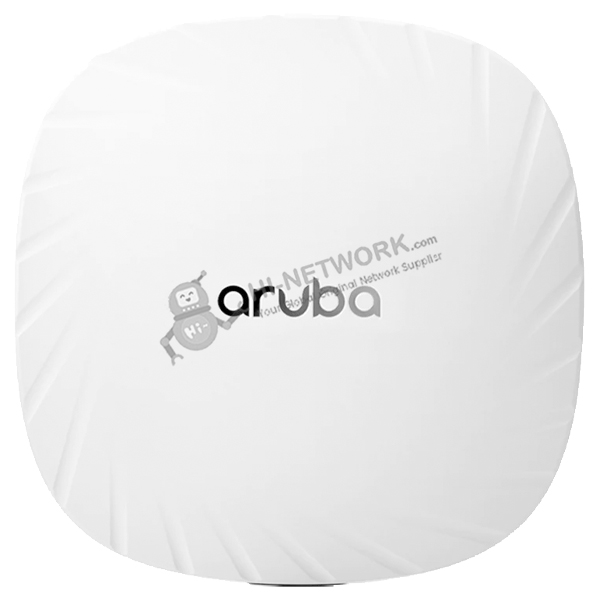

Figure 1 shows the appearance of R2H28A.

front-panel-r2h28a-datasheet


Product Details

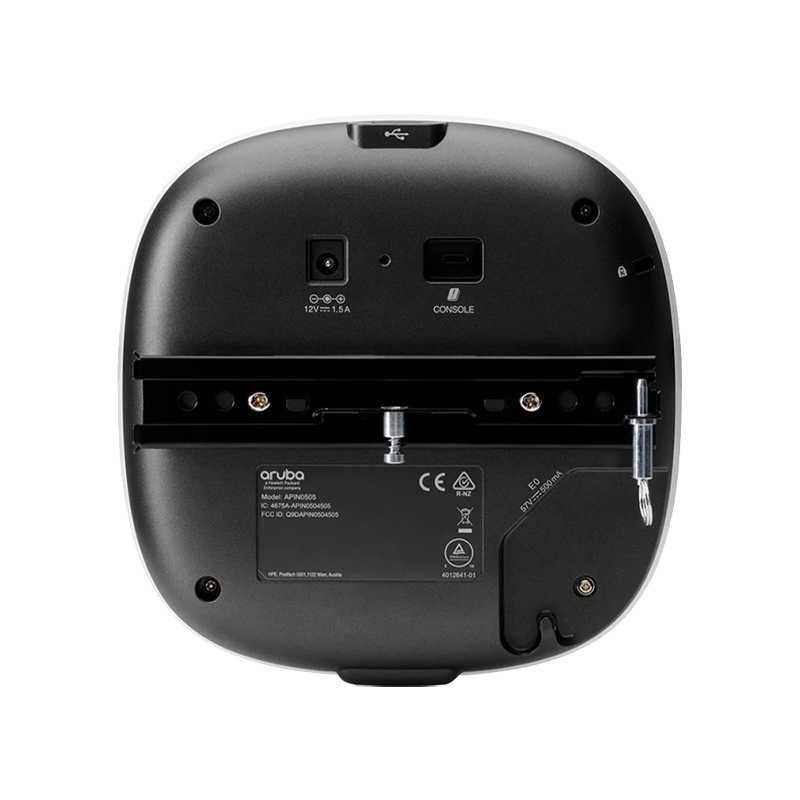

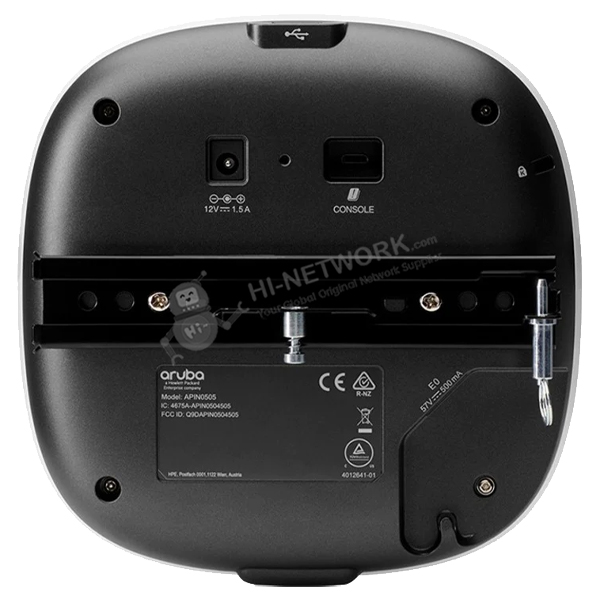

Figure 2 shows the back panel of R2H28A.

back-panel-r2h28a-datasheet


Key Features

● 1.49 Gbps maximum real-world speed (HE80/HE20)

● WPA3 and Enhanced Open security

● Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices

● OFDMA for enhanced multi-user efficiency

● IoT-ready Bluetooth 5 and Zigbee support


The Accessories


Table 2 shows the accessories of R2H28A.

Mount Kit

R3J18A

AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface

R3J19A

AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box

Power Adaptor

R3K00A

AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector


Compare to Similar Items


Table 3 shows the comparison.

Model

R2H28A

JZ336A

Series

Aruba AP-505

Aruba AP-535

AP type

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 4x4 MIMO

5GHz radio

Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices

Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously

2.4GHz radio

Two spatial stream Single User (SU) MIMO for up to 574Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices

Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with individual 4SS HE40 (HE20) 802.11ax client devices or with two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously

Antenna

2 Internal Omni-directional 5.7 DBi Antenna

4 integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz.

Supported data rates (Mbps)

● 802.11b: 1, 2, 5.5, 11

● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM

● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM

● 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

● 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

● 802.11b: 1, 2, 5.5, 11

● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM

● 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM

● 802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)

● 802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)


Get More Information


Do you have any questions about the R2H28A?

Contact us now via [email protected].

Specific Data Sheet:


R2H28A Specification

Series

Aruba AP-505

AP type

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO

Description

AP-505 (RW) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP

5GHz radio

Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices

2.4GHz radio

Two spatial stream Single User (SU) MIMO for up to 574Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices

Maximum number of BSSIDs

16 BSSIDs per radio

Supported frequency bands (country-specific restrictions apply)

● 2.400 to 2.4835GHz

● 5.150 to 5.250GHz

● 5.250 to 5.350GHz

● 5.470 to 5.725GHz

● 5.725 to 5.850GHz

Available channels

Dependent on configured regulatory domain

Supported radio technologies

● 802.11b: Direct-sequence spread-spectrum (DSSS)

● 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

● 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units

Supported modulation types

● 802.11b: BPSK, QPSK, CCK

● 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)

● 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)

● 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Antenna

2 Internal Omni-directional 5.7 DBi Antenna

Maximum No. of associated client devices

Up to 256 associated client devices per radio

Supported data rates (Mbps)

● 802.11b: 1, 2, 5.5, 11

● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM

● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM

● 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

● 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

802.11n high-throughput (HT) support

HT20/40

802.11ac very high throughput (VHT) support

VHT20/40/80

802.11ax high efficiency (HE) support

HE20/40/80

802.11n/ac/ax packet aggregation

A-MPDU, A-MSDU

Transmit power

Configurable in increments of 0.5 dBm

Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)

2.4 GHz band: +21 dBm (18dBm per chain) 5 GHz band: +21 dBm (18 dBm per chain) Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
