| Detail: | 48-Port Gigabit PoE+ Compliant Managed Network Switch with SFP+ |
| Model: | CBS220-48P-4G |
| Condition: | New Factory Sealed; In Stock |
| Related: | |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
6.5
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

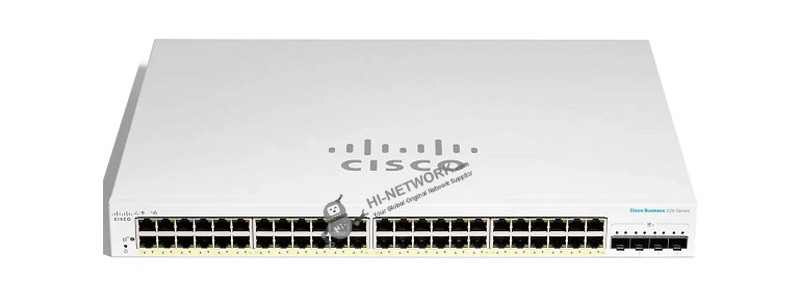

Cisco CBS220-48P-4X 48-Port Gigabit PoE+ Compliant Managed Network Switch with SFP+
Product Code | CBS220-48P-4X |
Inputs/Outputs | 48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 4 x 10Gb SFP+ |
Layer Services Supported | Layer 2 Support |
Jumbo Frames Support | 9216 Bytes |
MAC Address Table Size | 8K |
VLAN Groups | 256 |
Forwarding Rate | 130.94 Mpps |
Switching Bandwidth | 176 Gb/s |
AC Input Power | 110 to 220 VAC, 50 / 60 Hz |
PoE Power Budget | 382 W |
Dimensions | 17.3 x 10.1 x 1.7" / 440 x 257 x 44 mm |
Weight | 11.82 lb / 5.36 kg |
Do you have any question about the CBS220-48P-4X?
Contact us now via info@hi-network.com
Interfaces | |
Inputs/Outputs | 48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ |
Protocols | |
Layer Services Supported | Layer 2 Support |
Supported Protocols | Auto-MDIX/MDI |
Queuing | Strict Priority, Weighted Round Robin (WRR) |
Jumbo Frames Support | 9216 Bytes |
MAC Address Table Size | 8K |
VLAN Groups | 256 |
Security | |
Security Features | DoS Attack Prevention |
Access Control List | 512 |
Standards | |
Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u |
Performance | |
Forwarding Rate | 130.94 Mpps |
Switching Bandwidth | 176 Gb/s |
Packet Buffer | 16 Mb |
Electrical | |
Power Draw | 482.00 W (Max) |
AC Input Power | 110 to 220 VAC, 50 / 60 Hz |
PoE Power Budget | 382 W |
Power Supply Type | Internal |
Environmental | |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Operating Humidity | 10 to 90% |
Storage Temperature | -4 to 158°F / -20 to 70°C |
Storage Humidity | 10 to 90% |
Noise Level | 35.1 dB |
General | |
Cooling System | Fan |
Mean Time Between Failures (MTBF) | 265,589 Hours |
Dimensions | 17.3 x 10.1 x 1.7" / 440 x 257 x 44 mm |
Weight | 11.82 lb / 5.36 kg |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
