Detail: | Stratum 3 Clock Module Pinch Board |
Model: | H901CKUA |
Condition: | Factory Sealed New |
Related: | |
Warranty: |
1-Year Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
3.5
|
2-7 Days
US$
|
Payment: |
More
|

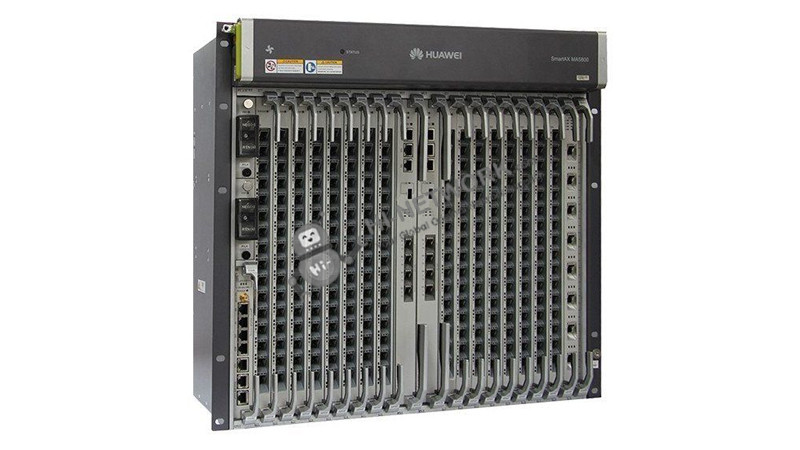

H901CKUA is Stratum 3 Clock Module Pinch Board of MA5800-X7 Series.
Model | H901CKUA |
Product Description | Stratum 3 Clock Module Pinch Board |
Product Series | MA5800-X7 |
Dimensions (H x W x D) | 442 mm x 268.7 mm x 263.9 mm |
Maximum Number of Ports in a Subrack | 112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1 |
Switching Capacity of the System | 7 Tbit/s |
Maximum Number of MAC Addresses | 262,143 |
Maximum Number of ARP/Routing Entries | 64K |
Product Code | H901CKUA | H901GPHF02 |
Product Description | Stratum 3 Clock Module Pinch Board | 16-port Advanced GPON OLT Interface Board(including Class C+ SFP Optical Module) |
Product Series | MA5800-X7 | MA5800-X7 |
Dimensions (H x W x D) | 442 mm x 268.7 mm x 263.9 mm | 442 mm x 268.7 mm x 263.9 mm |
Maximum Number of Ports in a Subrack | 112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1 | 112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1 |
Do you have any question about the H901CKUA?
Contact us now via [email protected].
Specific Data Sheet:
Model | H901CKUA |
Product Description | Stratum 3 Clock Module Pinch Board |
Product Series | MA5800-X7 |
Dimensions (H x W x D) | 442 mm x 268.7 mm x 263.9 mm |
Maximum Number of Ports in a Subrack | 112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1 |
Switching Capacity of the System | 7 Tbit/s |
Maximum Number of MAC Addresses | 262,143 |
Maximum Number of ARP/Routing Entries | 64K |
Ambient Temperature | -40°C to 65°C Note: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent |
Working Voltage Range | -38.4V DC to -72V DC |
Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 |
Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF |
MPLS & PWE3 | MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching |
IPv6 | IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay |
Multicast | IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast |
QoS | Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL |
System Reliability | GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control |
