| Detail: | S2700-9TP-PWR-EI Mainframe(8 Ethernet 10/100 ports, PoE+, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V) |
| Model: | S2700-9TP-PWR-EI (02352335) |
| Condition: | Factory Sealed New |
| Related: | Huawei Switch S2700-9TP-EI-AC (02352340) Huawei Switch S2700-9TP-EI-DC (02352347) Huawei Switch S2700-9TP-SI-AC (02352337) |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
8.0
|
2-7 Days
US$
|
| Payment: |
More
|
Huawei S2700-9TP-PWR-EI is a switch that supports 8 Ethernet 10/100 ports, one dual-purpose 10/100/1000 or SFP and provides a 124 W internal power module for PoE. It’s one of the S2700 Series Enterprise Switches that deliver Standard (SI) and Enhanced (EI) models with Huawei’s exclusive Easy Operation Toolkit for easy installation, configuration, monitoring, and trouble shooting. This switch is an Enhanced model.
Model | S2700-9TP-PWR-EI |
Part Number | 02352335 |
Memory (RAM) | 64 MB |
Flash | 16 MB |
PoE | Supported |
Dimensions (H x W x D) | 43.6 mm x 320.0 mm x 220.0 mm (1.72 in. x 12.6 in. x 8.7 in.) |
Weight | ≤ 3.5 kg (7.72 lb) |

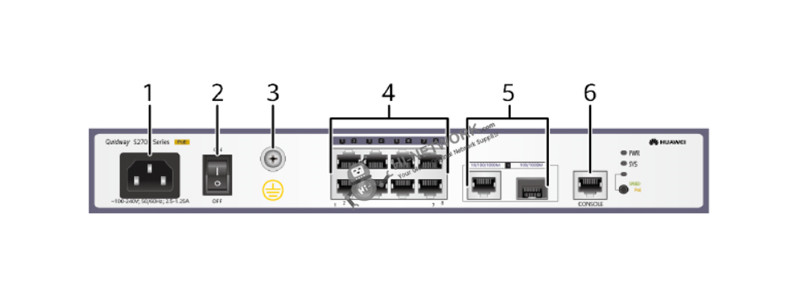

① | AC socket |
② | Power switch |
③ | Ground screw |
④ | Eight PoE+ 10/100BASE-TX ports |
⑤ | One combo port (10/100/1000BASE-T + 100/1000BASE-X) |
⑥ | One console port |
Models | Descriptions |
FE-SFP Optical Transceiver | |
Optical Transceiver,SFP,100M/155M,Multi-mode Module (1310nm,2km,LC) | |
Optical Transceiver,eSFP,100M/155M,Single-mode Module (1310nm,15km,LC) | |
Optical Transceiver, eSFP, FE, Single-mode Module (1310nm,40km,LC) | |
GE-SFP Optical Transceiver | |
Electrical Transceiver, SFP, GE, Electrical Interface Module (100m,RJ45) | |
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.55km,LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km,LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km,LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km,LC) | |
Models | ||
Downlink Ports | Eight PoE+ 10/100BASE-TX ports | Eight 10/100BASE-TX ports |
Uplink Ports | One combo port | One combo port |
Power Supply | AC Power Supply | AC Power Supply |
Models’ Version | Enhanced | Enhanced |
Do you have any question about the S2700-9TP-PWR-EI 02352335?
Contact us now viainfo@hi-network.com
Part Number | 02352335 |
Model | S2700-9TP-PWR-EI |
Memory (RAM) | 64 MB |
Flash | 16 MB |
Mean time between failures (MTBF) | 35.5 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±1 kV |
Power supply surge protection | ±2 kV in differential mode, ±4 kV in common mode |
Dimensions (H x W x D) | 43.6 mm x 320.0 mm x 220.0 mm (1.72 in. x 12.6 in. x 8.7 in.) |
Weight | ≤ 3.5 kg (7.72 lb) |
Stack ports | Not supported |
RPS | Not supported |
PoE | Supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum power consumption (100% throughput) | 154 W (system power consumption: 30 W, PoE: 124 W) |
Operating temperature | -5°C to +50°C (23°F to 122°F) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | Noise-free (no fans) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-2000 m (0-6562 ft.) |
Certification | EMC certification Safety certification Manufacturing certification |
