Detail: | IE 4000 8 x SFP 1G, 4 x 1G Combo, LAN Base |
Model: | IE-4000-8GS4G-E |
Condition: | Original New |
Related: | |
Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
15.0
|
2-7 Days
US$
|
Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

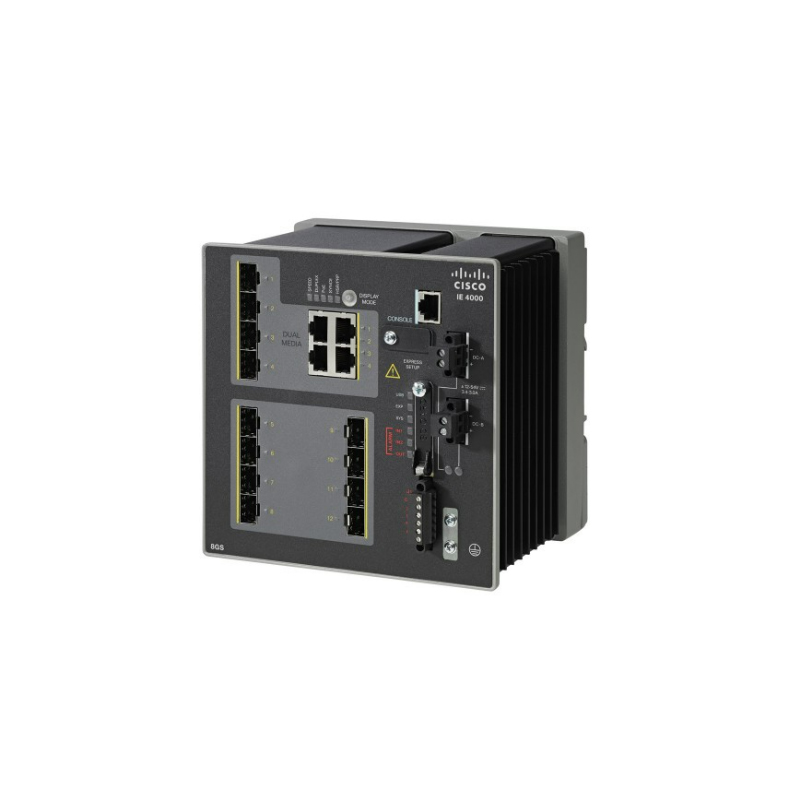

IE-4000-8GS4G-E is an IE4000 series switch providing 8 x SFP 1G, 4 x 1G Combo, and LAN Base. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including manufacturing, energy, transportation, smart cities. The IE4000 has built-in SW image verification to ensure authenticity of the Cisco Software. With improved overall performance, greater bandwidth, advanced security features, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.
Part Number | IE-4000-8GS4G-E |
Total Ports | 12 |
GE combo uplinks (4G) | 4 GE combo uplink ports |
SFP fiber ports (S) | 8 GE |
Default software | LAN Base feature set |
Dimensions (H x W x D) | 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) |
Weight | 6.35 pounds (2.88 kg) |
① | 4 GE combo uplink ports |
② | 8GE SFP fiber ports |
③ | Alarm connector |
④ | Protective ground connection |
⑤ | Flash memory card slot |
⑥ | Power connector DC-B |
⑦ | Power connector DC-A |
⑧ | RJ-45 console port |
⑨ | USB mini-Type B (console) port (Use a screwdriver to remove the port cover and access the port.) |
Models | Description |
L-IE4000-RTU= | Electronic IP SERVICES License for IE4000 Switches |
C1F1PIE4K5K1K9 | Cisco ONE Foundation Perpetual - IE 4000/5000 |
C1A1PIE40001K9 | Cisco ONE Advanced Perpetual - IE 4000 |
GLC-SX-MM-RGD | Cisco GLC-SX-MM-RGD 1000Mbps Multi-Mode Rugged SFP |
1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1550-nm RX wavelength, single LC/PC connector | |
GLC-TE | 1000BASE-T SFP transceiver module for Category 5 copper wire |
1000BASE-ZX SFP | |
1000BASE-BX SFP, 1310NM | |
1000BASE-LX/LH SFP (DOM) | |
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | |
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
GLC-FE-100EX | 100BASE-EX SFP (40km) |
100BASE-BX10-U SFP |
Part Number | IE-4000-16T4G-E | |
Total ports | 20 | 20 |
GE combo uplinks (4G) | 4 GE combo uplink ports | 4 GE combo uplink ports |
RJ-45 copper ports (T) | N/A | 16 FE |
SFP fiber ports (S) | 8 GE | N/A |
Default software | LAN Base feature set | LAN Base feature set |
Do you have any question about the IE-4000-8GS4G-E?
Contact us now via [email protected]
Physical Specification | |
Total ports | 12 |
GE combo uplinks (4G) | 4 GE combo uplink ports (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.) |
SFP fiber ports (S) | 8 GE |
Default software | LAN Base feature set (Can be upgraded to IP Services at a fee.) |
Hardware | ● 1GB DRAM ● 128-MB onboard flash memory ● 1-GB removable SD flash memory card ● Mini-USB connector ● RJ-45 connector |
Alarms | Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay |
Power inputs | ● Redundant DC input voltage with operating range: nominal 9.6 to 60VDC ● Maximum DC input current: 5A |
Power consumption | 42W |
Dimensions (H x W x D) | 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) |
Weight | 6.35 pounds (2.88 kg) |
Switch performance and scalability | |
Forwarding rate | Line rate for all ports and all packet sizes |
Number of queues | 4 egress |
Unicast MAC addresses | 16,000 |
Internet Group Management Protocol (IGMP) multicast groups | 1,000 |
No. of VLANs | 1,000 |
IPv4 MAC security ACEs | 1,000 with default TCAM Template |
NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
